Shop HUBBELL WIRING DEVICE-KELLEMS

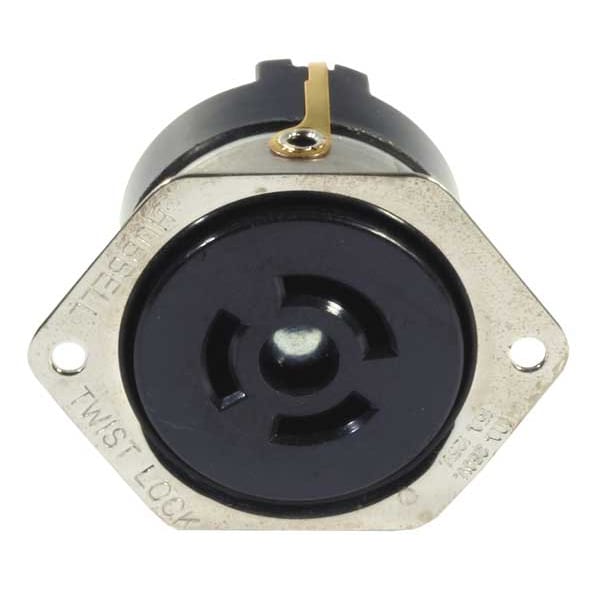

Flanged Locking Receptacle, Non-NEMA, 10/15 A, 125/250V AC, Single Phase, 2 Pole, Flush Mount

  • Mfr # HBL7557G

  • Zoro # G6752742

product price:
$
44.65
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
10/15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL7557G
Zoro #
G6752742
UPC #
783585237671
Country of Origin
United States

Dimensions

Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Wire Size
#18 AWG -#10 AWG solid or stranded copper wire only.
Dimensions
2.31 in x 1.75 in x 1.32 in
Width
1.75 in
Length
2.31 in
Height
1.32 in

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
10/15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Brown, Silver
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Grade
Industrial
Mounting Type
Flush Mount
Wiring Style
Standard
Material
Nylon
Special Features
With Stainless Steel Plate
IP Rating
IP20
Flange Shape
Oval
Polarized
Yes
Housing Material
Stainless Steel
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Includes
Mounting Screws
Connection Orientation
Straight
Number of Gangs
1
NEMA Enclosure Rating
12, 4X
Market
Industrial
Maximum Operating Temperature
167 Degrees F
Shrouded
No
Flange Material
Stainless Steel
AFCI
No
For Environment
Dry
For Location
Indoor
Includes Mounting Hardware
Yes
Lock Type
Replacement-use
Spring Material
Brass
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Terminal Designations
Terminals identified in accordance with UL 498
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG -#10 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
10/15 A
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty Industrial
Amps
15/10
NEMA Rating
12, 4X
UL 94 Flammability Rating
HB

Description

Flanged Locking Receptacle, Connection Orientation Straight, Current Rating 10/15 A, Flange Shape Oval, Flange Type Flanged, Housing Color Brown, Housing Material Stainless Steel, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration Non-NEMA, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass
