  11. Pin & Slve Plug, 30A, 4P, 4W, 600VAC/250VDC

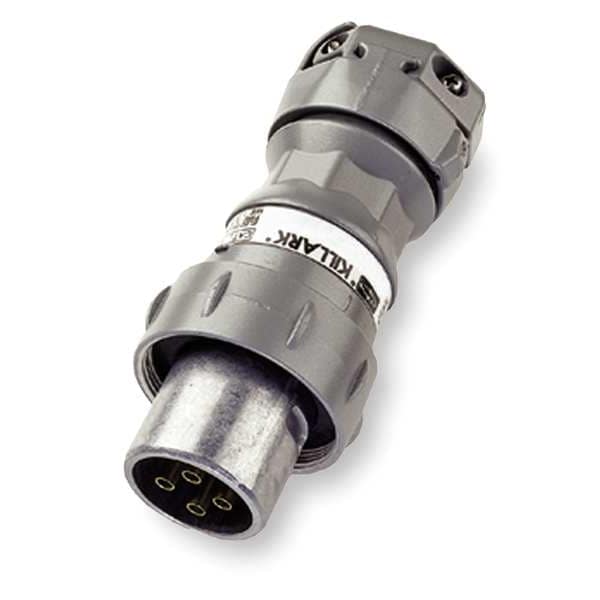

Hubbell Killark Pin & Slve Plug, 30A, 4P, 4W, 600VAC/250VDC VP3475 - main

Pin & Slve Plug, 30A, 4P, 4W, 600VAC/250VDC

  • Mfr # VP3475

  • Zoro # G1273517

product price: $278.99
/ea
Free Shipping & Returns

Key Features

Voltage
600V AC/250V DC
NEMA Rating
4x
Amps - Plugs and Receptacles
30 A
Amps
30 A
Standards
CSA Certified LR111846, UL E10757
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VP3475
Zoro #
G1273517
UPC #
783936834085
Country of Origin
United States

Dimensions

Maximum Wire Size
6 AWG
Overall Length
6.688 in
Face Diameter
1.875 in
Outside Diameter
3 in
Minimum Wire Size
10 AWG
Length
6.68 in
Width
3 in
Height
3 in
Dimensions
6.68 in x 3 in x 3 in

Details

Item
Pin and Sleeve Plug
Voltage
600V AC/250V DC
NEMA Rating
4x
Amps - Plugs and Receptacles
30 A
Amps
30 A
Standards
CSA Certified LR111846, UL E10757
Number of Wires
4
Number of Poles
4
Switch Rated
No
Grounding Style
Style 1
Material
Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish
Finish
Epoxy Polyester
Features
Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable
Phase
Three
Current Rating
30 A
Voltage Rating
250V DC, 600V AC
IP Rating
Not Rated
Market
Industrial
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D
NEMA Enclosure Rating
4X
For Environment
Cold, Corrosive, Hazardous Location, Marine, Wet
Reverse Service
No
For Location
Indoor, Outdoor
Grounding
Grounded
Housing Color
Gray
Connection Orientation
Straight
Wire Connection Type
Screw Terminals
Housing Material Finish
Baked Powder Epoxy/Polyester Coated
Power Indicating Light
No
Shrouded
Yes
Housing Material
Metallic
Type
Pin & Sleeve
Hz
50-400 Hz
Amperage Rating
30 A
Application
Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Reï¬neries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
Series
VersaMate
Grommet Range
0.55-1.20
Style
Style I
Frequency Rating
50-400 Hz
Finish Type
Baked Powder Epoxy/Polyester Finish

Description

The HUBBELL Pin & Sleeve Plug, 30A, 4P, 4W is an electrical connector rated for industrial environments. This plug features an octagonal body style for a secure grip during connection and disconnection. It is rated for up to 30 amps and supports both 600V AC and 250V DC applications with four poles and four wires. The unit is constructed from copper-free aluminum with a baked powder epoxy/polyester finish, with a finish intended for use in wet, cold, hazardous, corrosive, or marine locations.


Key Features of the HUBBELL Pin & Sleeve Plug:

  • Amperage/Voltage: Rated for 30 A at 600V AC / 250V DC

  • Poles/Wires: Four poles and four wires (grounded)

  • NEMA Enclosure Rating: Type 4X when used with VersaMate receptacle and locking ring tightened

  • Hazardous Location Specification: Suitable for Class I, Divisions 1 & 2; Groups A-D

  • Body Design: Octagonal shape facilitates grip during handling

  • Cable Compatibility: Accepts wire sizes from #10 AWG to #6 AWG; suitable for Type P marine cable

  • Wire Connection Type: Screw terminals with gripper ribs designed to clamp conductors

  • Material/Finish: Copper-free aluminum housing with electrostatically applied epoxy powder coating

  • Straight Connection Orientation; shrouded design (Style I)

  • Chemical Resistance/Frequency Range: Rated for use in corrosive areas; frequency rating of 50-400 Hz

  • Standards Compliance: CSA Certified LR111846; UL E10757 listed
