Shop HUBBELL KILLARK

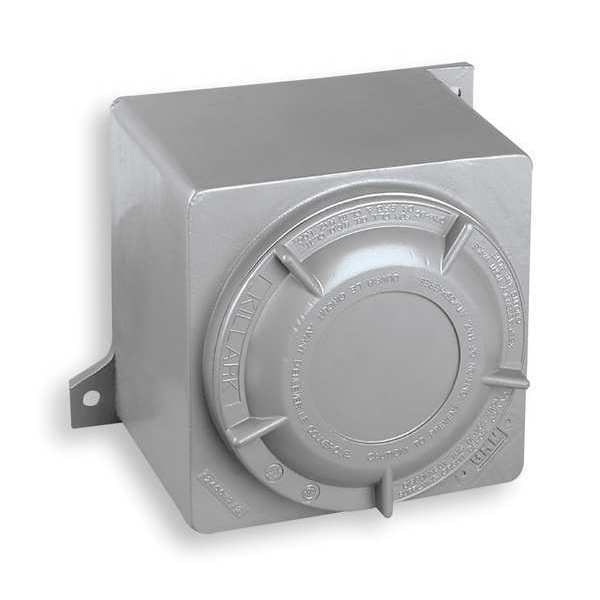

Screws Electrical Enclosures, 6 in H, 4.18 in D, 6 in W, 4, Copper-Free Aluminum

  • Mfr # GRM

  • Zoro # G1074805

product price:  $483.99
/ea
Free Shipping & Returns

Key Features

Nominal Width
6 in
Nominal Height
6 in
Nominal Depth
4.18 in
NEMA Enclosure Rating
4
Enclosure Material
Copper-Free Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GRM
Zoro #
G1074805
UPC #
783936230061
Country of Origin
Mexico

Dimensions

Nominal Width
6 in
Nominal Height
6 in
Nominal Depth
4.18 in
Max. Conduit Size
2 in
Usable Opening Depth
4.18 in
Overall Depth
6.56 in
Overall Width
8.13 in
Panel Width
6 in
Overall Height
6.87 in
Panel Height
6 in

Details

Item
Electrical Enclosures
NEMA Enclosure Rating
4
Enclosure Material
Copper-Free Aluminum
Closure Method
Screws
Cover Closure Type
Screw On
Metallic / Non-Metallic
Metallic
Color
Gray
Finish
Powder Epoxy/Polyester
Mounting
Wall
Cover Style
Solid
Cover Type
Screw On with Blank Cover
Safety Rating
Class 1, Division 1
Lid Hinge
No
Standards
CSA File No. LR11716, IEC E x 05.0029U/IEC E x 05.0028, PTB 02 ATEX 1071U/PTB 02 ATEX 1072, UL File No. E10514/E83696
Interior Panel
2NWD4
NEMA Rating
3, 4, 4X, 7 (B,C,D), 9 (E,F,G)
Series
GR
Material
Aluminum
Gasket Replacement
GRM-RG
IP Rating
IP66
Gasket
70 Durometer NITRILE
Application
Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica
CSA File Number
LR11716
Environment - MERCH
Washdown
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2
Gasket Material
Nitrile
Includes Knockouts
Knockouts Not Included
Product Type
Enclosure and Blank Cover

Description

Closure Method Screws, Finish Powder Epoxy/Polyester, Color Gray, Depth 6.56 in, 70 Durometer NITRILE Gasket, Height 6.87 in, Interior Panel 2NWD4, IP Rating IP66, Series GR, Standards CSA File No. LR11716, IEC E x 05.0029U/IEC E x 05.0028, PTB 02 ATEX 1071U/PTB 02 ATEX 1072, UL File No. E10514/E83696, Usable Opening Depth 4.18 in, Width 6.87 in
