  11. Ethernet Cable, Cat 6, Blue, 5 ft.

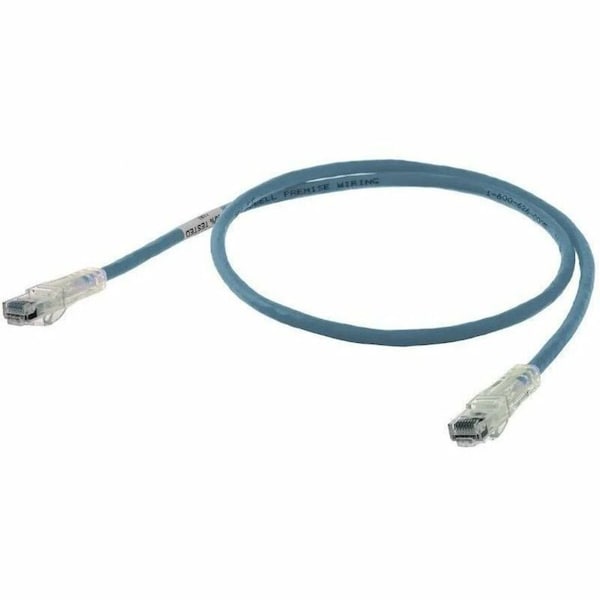

Hubbell Premise Wiring Ethernet Cable, Cat 6, Blue, 5 ft. HC6B05 - main

Ethernet Cable, Cat 6, Blue, 5 ft.

  • Mfr # HC6B05

  • Zoro # G3543976

product price: $15.89
/ea

Key Features

Connector Type - Patch Cord
RJ45, RJ45
Boot Type - Data cable
Clear Boot, Clear Boot
End 1 Connection Type
RJ45
Length - Patch Cord
5.0 ft
Cable Shape
Round
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HC6B05
Zoro #
G3543976
UPC #
662620231501
Country of Origin
United States

Dimensions

Length - Patch Cord
5.0 ft
Cable Length
5 ft
Wire Size
24 AWG
Length
5 ft.
Conductor Size - Data Cable
24 AWG
Outside Dia.
0.218 in
Overall Length
5 ft
Cable Diameter
0.2 in
Outside Diameter
0.218

Details

Item
Voice and Data Patch Cord
Connector Type - Patch Cord
RJ45, RJ45
Boot Type - Data cable
Clear Boot, Clear Boot
End 1 Connection Type
RJ45
Cable Shape
Round
Transmission Speed
10 GBps
End 2 Connection Type
RJ45
Standards
ANSI/TIA/EIA-568-C.2, EU RoHS Compliant, ISO 11801/60603-7-41
Cable Type
Standard
Performance Category
6
Fire Rating - Data Cable
Commercial
Temp. Range
-40 Degrees to 167 Degrees F
Jacket Material
PVC
Shielding
None
Connector Type
RJ45 - 8P8C
Color
Blue
Shielded
Unshielded
NEC Article and Type
800 CM
Item - Data Cable
Voice and Data Patch Cord
Jacket Color
Blue
Wire Gauge
24 AWG
Category Type
6
Plenum Rated
No
Jacket Material - Wire and Cable
PVC
Category - Data Cable
6
Boot Type
Clear Boot
Features
Flame Retardant, Stranded
Jacket Type
CM
Conductor Material
Copper
Attenuation
0.1 dB
Solid / Stranded
Stranded
Total Number of Conductors - Data Cable
8
Insulation Material
PVC
Minimum Operating Temperature
-40 Degrees F
End 2 Boot Type
Clear Boot
Maximum Operating Temperature
167 Degrees F
Maximum Voltage Rating
300 kV AC
Fire Rating
Commercial
End 1 Boot Type
Clear Boot
Resistance Properties
Flame/Fire Resistant
Conductor Gauge
24 AWG
American Wire Gauge
24 AWG
Item Type
NEXTSPEED Category 6 and 5e Patch Cords
Type
Standard
Connector Gender on First End
Male
Plug Type
RJ45
Number Of Conductors
8-Conductor
Product Name
Patch Cord, Speed Gain, Cat6, Slim, Blue, 5'
Contact Plating
Gold
Material Details
PVC - Boot, Copper - Conductor, Polycarbonate - Plug Body/Plug Boot
Cable Characteristic
Patch Cable
Connector Gender on Second End
Male
Device Supported
Network Device
Material - Insulation
Flame Redardant PVC
Product Material
Copper, PVC, Polycarbonate
Product Type
Network Cable
Conductor Type
Copper
Material - Jacket
Flame Redardant PVC
Product Line
NEXTSPEED
Connector Type on First End
RJ-45 Network - Male
Connector on First End Details
1 x RJ-45 Network - Male
OEM Brand Name
Hubbell Premise Wiring
Data Transfer Rate
10 Gbit/s
Conductor Stranding
Stranded
Product Color
Blue
Voltage Rating
300V AC kV
Connector on Second End Details
1 x RJ-45 Network - Male
Connector Type on Second End
RJ-45 Network - Male
Number of Conductors
8

Description

Voice and Data Patch Cord, Cable Shape Round, Conductor Gauge 24 AWG, Jacket Color Blue, Overall Length 5 ft, Performance Category 6, Shielded Unshielded, Fire Rating Commercial, Jacket Material PVC, Standards ANSI/TIA/EIA-568-C.2, EU RoHS Compliant, ISO 11801/60603-7-41, Transmission Speed 10 GBps, NEC Article and Type 800 CM, End 1 Boot Type Clear Boot, End 2 Boot Type Clear Boot, End 2 Connection Type RJ45, End 1 Connection Type RJ45, Cable Diameter 0.2 in, Insulation Material PVC
