Shop TRIPP LITE

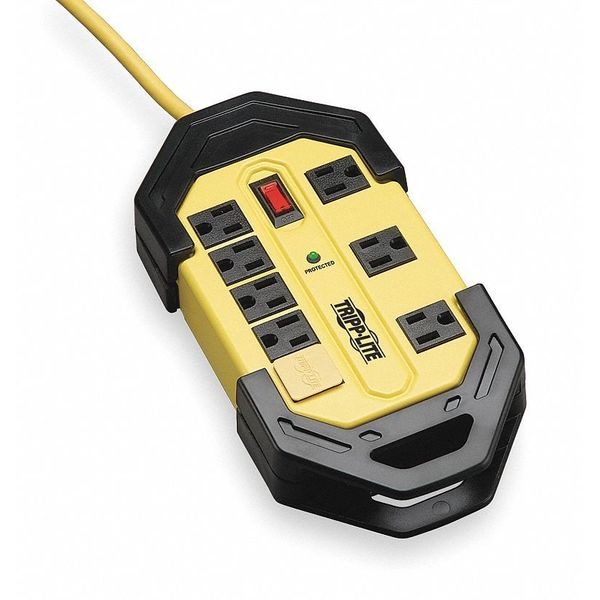

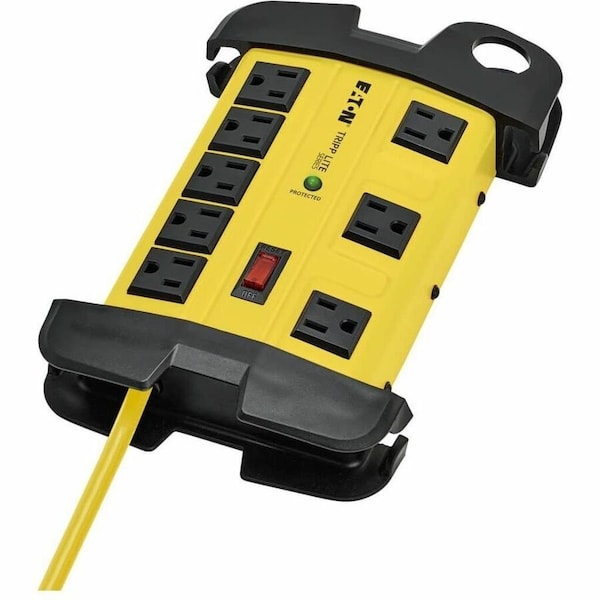

Outlet Strip, Surge, 8 5-15R, 5-15P, 12 ft., Black/Yellow

  • Mfr # TLM812SA

  • Zoro # G0849012

product price:  $100.99
/ea
Free Shipping & Returns

Key Features

Type
Surge
Total Number of Outlets
8
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Cord Length
12 ft.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TLM812SA
Zoro #
G0849012
UPC #
037332140074
Country of Origin
China

Dimensions

Cord Length
12 ft.
Length
10 1/4 in
Width
5 1/8 in
Depth
1-37/64"
Height
1 19/32 in
Cord Length - Ext. Cords and Outlet Strips
12 ft.
Wire Size
14 AWG
Length (Straight Wireway)
10 1/4 in
Outlet Strip Length
10 1/4 in

Details

Item
Outlet Strip
Type
Surge
Total Number of Outlets
8
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
Black/Yellow
Gauge/Conductor
14/3
Standards
cUL Listed; UL Listed; RoHS
Circuit Breaker
1
Number of Outlets
8
Outlet Center Distance
25.4mm Standard, 50.8mm Standard and Transformer
Rated Joules
1,500
NEC Cord Designation
SJT
Mounting Style
Keyhole
Coax Surge Protection
No
Max. Surge Current
60 kA
For Use With
Automotive, Factory, Hardware, Industrial
Footnotes
6,12
Noise Attenuation
Up to 20dB
Number of Transformer Outlets
3
Max. Amps
15 A
Voltage
120V AC
Hz
60 Hz
NEMA Receptacle Configuration
5-15R
Power Indicator
Yes
Includes
(4) Safety Covers, Owner's Manual
Medical Grade
No
Housing Material
Metal
NEMA Plug Configuration
5-15P
Gauge/Conductor - Ext. Cords and Outlet Strips
14/3
Communication Port
None
Max. Amps - Ext. Cords and Outlet Strips
15.0
Number of Total Outlets - Ext. Cords and Outlet Strips
8
Outlet Surge Protection
Yes
Medical Facility Use
Not Allowed
Color - Ext. Cords and Outlet Strips
Black/Yellow
NEMA Plug Configuration - Ext. Cords and Outlet Strips
5-15P
Number of Conductors
3
USB Charging Port
0
Application
Commercial and Industrial
Trade Designation
SJT
Features
Automatic Shut-Off, Diagnostic LED(s), Integrated Cord Clip, Integrated Keyhole Mounting Slots
Watts
1800W
Input Voltage
120 V AC
Output Voltage
120 V AC
Surge Energy Rating
1500 J
Package Contents
TLM812SA 8 Outlet Safety Surge Suppressor, TLM812SA Safety Surge Suppressor, 4 safety covers, Owner's manual
Maximum Line Current
15 A
Material of Construction
Metal
Diagnostic LED Details
1 green "protected" LED confirms surge suppression is present
Diagnostic LED(s)
Yes
Mounting Holes or Slots
Yes
Integrated Cord Clip
Yes
Circuit Breaker (amps)
15
AC Suppression Joule Rating
1500
Overload Protection
Combo power switch and circuit breaker
Outlets Measurement (Center to Center)
Distance between standard outlets = 25.40mm; Distance between standard and transformer outlets = 50.80mm
Frequency Compatibility
60 Hz
Nominal Input Voltage(s) Supported
120V AC
AC Suppression Response Time
< 1 ns
Input Cord Details
SJT
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
Output Receptacles
(8) 5-15R
Maximum Surge Amps
60000
EMI / RFI Filtering
Up to 20 dB
Outlet Orientation
1 bank of 5, 1 bank of 3 (transformer outlets)
Package Includes
TLM812SA Safety Surge Suppressor;4 safety covers;Owner's manual
Network (Ethernet) Protection
No
Product Type
Surge Protector Outlet Strip
Plug Style
Straight
Maximum Surge Current
60 kA
Frequency
60 Hz
Rated Energy Absorption
1,500 J
Maximum Current
15 A
Number of Circuit Breakers
1
Medical Facility Use UL Rating
Not Allowed

Description

Outlet Strip, Application Commercial and Industrial, Housing Material Metal, Total Number of Outlets 8, Max. Amps 15 A, Cord Length 12 ft, Number of Power Switches 1, Power Indicator Yes, Receptacle Configuration NEMA 5-15R, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Mounting Style Keyhole, Color Black, Yellow, Medical Facility Use Not Allowed, Number of Transformer Outlets 3, Number of Conductors 3, Voltage 120V AC, Outlet Center Distance 25.4mm Standard, 50.8mm Standard and Transformer
