  11. Ethernet Cable, Cat 6A, Yellow, 20 ft.

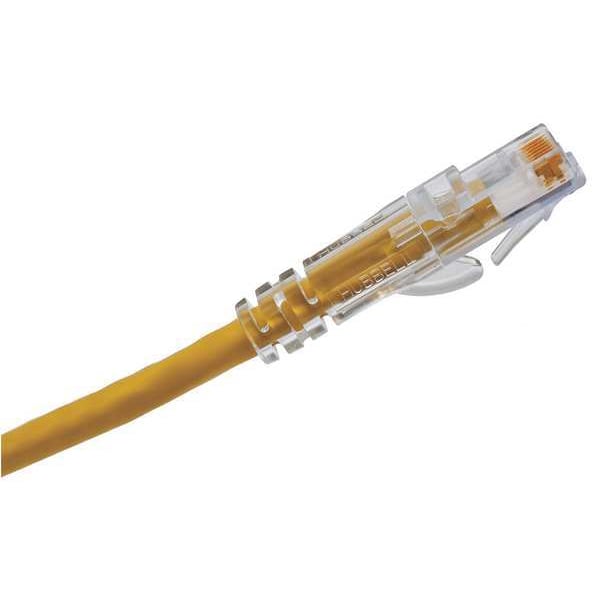

Hubbell Premise Wiring Ethernet Cable, Cat 6A, Yellow, 20 ft. HC6AY20 - main

Ethernet Cable, Cat 6A, Yellow, 20 ft.

  • Mfr # HC6AY20

  • Zoro # G6594734

product price: $44.75
/ea

Key Features

Connector Type - Patch Cord
RJ45, RJ45
Boot Type - Data cable
Clear Boot, Clear Boot
End 1 Connection Type
RJ45
Length - Patch Cord
20 ft
Cable Shape
Round
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HC6AY20
Zoro #
G6594734
UPC #
662620231310
Country of Origin
United States

Dimensions

Length - Patch Cord
20 ft
Wire Size
24 AWG
Length
20 ft.
Conductor Size - Data Cable
26 AWG
Outside Dia.
0.218 in
Overall Length
20 ft
Cable Diameter
0.2 in

Details

Item
Voice and Data Patch Cord
Connector Type - Patch Cord
RJ45, RJ45
Boot Type - Data cable
Clear Boot, Clear Boot
End 1 Connection Type
RJ45
Cable Shape
Round
Transmission Speed
10 GBps
End 2 Connection Type
RJ45
Standards
ANSI/TIA/EIA-568-C.2, EU RoHS Compliant, ISO 11801/60603-7-41
Cable Type
Standard
Performance Category
6A
Plenum Rated
No
Jacket Material
PVC
Temp. Range
-40 Degrees to 167 Degrees F
Category Type
6A
Category - Data Cable
6A
Item - Data Cable
Voice and Data Patch Cord
Shielded
Unshielded
Shielding
None
Jacket Material - Wire and Cable
PVC
Fire Rating - Data Cable
Commercial
Boot Type
Clear Boot
Connector Type
RJ45 - 8P8C
Wire Gauge
26 AWG
NEC Article and Type
800 CM
Jacket Color
Yellow
Color
Yellow
Solid / Stranded
Stranded
Features
Extended Strain Relief
Conductor Material
Copper
Attenuation
0.1 dB
Total Number of Conductors - Data Cable
8
Maximum Voltage Rating
300 kV AC
Conductor Gauge
24 AWG
Resistance Properties
Flame/Fire Resistant
Minimum Operating Temperature
-40 Degrees F
Fire Rating
Commercial
End 1 Boot Type
Clear Boot
Maximum Operating Temperature
167 Degrees F
Insulation Material
PVC
End 2 Boot Type
Clear Boot
For Use With
Network Applications

Description

Voice and Data Patch Cord, Cable Shape Round, Conductor Gauge 24 AWG, Jacket Color Yellow, Overall Length 20 ft, Performance Category 6A, Shielded Unshielded, Fire Rating Commercial, Jacket Material PVC, Standards ANSI/TIA/EIA-568-C.2, EU RoHS Compliant, ISO 11801/60603-7-41, Transmission Speed 10 GBps, NEC Article and Type 800 CM, End 1 Boot Type Clear Boot, End 2 Boot Type Clear Boot, End 2 Connection Type RJ45, End 1 Connection Type RJ45, Cable Diameter 0.2 in, Insulation Material PVC
