  11. Patch Cord, Speed Gain, Cat6, Slim, Blue, 3'

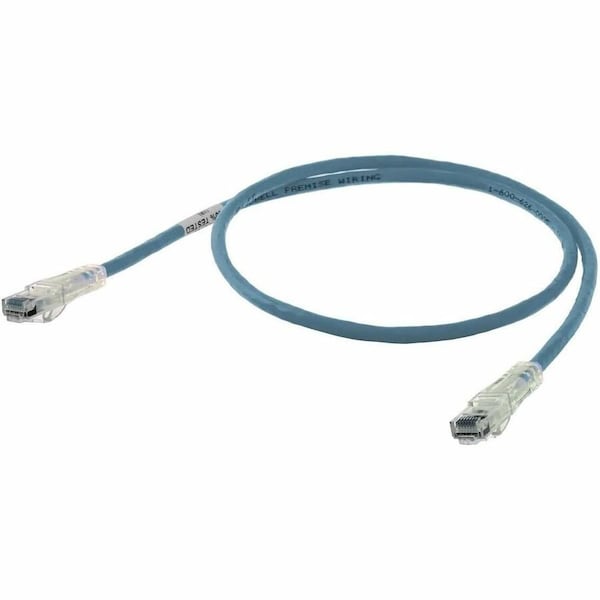

Hubbell Premise Wiring Patch Cord, Speed Gain, Cat6, Slim, Blue, 3' HC6B03 - main

Patch Cord, Speed Gain, Cat6, Slim, Blue, 3'

  • Mfr # HC6B03

  • Zoro # G3661497

product price: $15.15
/ea

Key Features

Connector Type - Patch Cord
RJ45, RJ45
Boot Type - Data cable
Clear Boot, Clear Boot
End 1 Connection Type
RJ45
Length - Patch Cord
3.0 ft
Cable Shape
Round
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HC6B03
Zoro #
G3661497
UPC #
662620231495
Country of Origin
United States

Dimensions

Length - Patch Cord
3.0 ft
Cable Length
3 ft
Wire Size
24 AWG
Conductor Size - Data Cable
24 AWG
Length
3 ft.
Outside Dia.
0.218 in
Cable Diameter
0.2 in
Overall Length
3 ft
Outside Diameter
0.218

Details

Item
Voice and Data Patch Cord
Connector Type - Patch Cord
RJ45, RJ45
Boot Type - Data cable
Clear Boot, Clear Boot
End 1 Connection Type
RJ45
Cable Shape
Round
Transmission Speed
10 GBps
End 2 Connection Type
RJ45
Standards
ANSI/TIA/EIA-568-C.2, EU RoHS Compliant, ISO 11801/60603-7-41
Cable Type
Standard
Performance Category
6
Jacket Material
PVC
Connector Type
RJ45 - 8P8C
Shielded
Unshielded
Jacket Material - Wire and Cable
PVC
Jacket Color
Blue
Category - Data Cable
6
Boot Type
Clear Boot
Item - Data Cable
Voice and Data Patch Cord
NEC Article and Type
800 CM
Shielding
None
Plenum Rated
No
Temp. Range
-40 Degrees to 167 Degrees F
Category Type
6
Fire Rating - Data Cable
Commercial
Wire Gauge
24 AWG
Color
Blue
Total Number of Conductors - Data Cable
8
Features
Flame Retardant, Stranded
Attenuation
0.1 dB
Conductor Material
Copper
Solid / Stranded
Stranded
Jacket Type
CM
Insulation Material
PVC
Fire Rating
Commercial
End 1 Boot Type
Clear Boot
Maximum Operating Temperature
167 Degrees F
Resistance Properties
Flame/Fire Resistant
Minimum Operating Temperature
-40 Degrees F
End 2 Boot Type
Clear Boot
Conductor Gauge
24 AWG
Maximum Voltage Rating
300 kV AC
Product Line
NEXTSPEED
Cable Characteristic
Patch Cable
Product Name
Patch Cord, Speed Gain, Cat6, Slim, Blue, 3'
Item Type
NEXTSPEED Category 6 and 5e Patch Cords
Contact Plating
Gold
Connector Type on First End
RJ-45 Network - Male
Connector on First End Details
1 x RJ-45 Network - Male
Connector Type on Second End
RJ-45 Network - Male
Conductor Type
Copper
Connector on Second End Details
1 x RJ-45 Network - Male
Product Type
Network Cable
American Wire Gauge
24 AWG
Voltage Rating
300V AC kV
Connector Gender on Second End
Male
Conductor Stranding
Stranded
Plug Type
RJ45
Data Transfer Rate
10 Gbit/s
Device Supported
Network Device
Material Details
PVC - Boot, Copper - Conductor, Polycarbonate - Plug Body/Plug Boot
Material - Jacket
Flame Redardant PVC
Material - Insulation
Flame Redardant PVC
Number of Conductors
8
Type
Standard
Connector Gender on First End
Male
Product Material
Polycarbonate, Copper, PVC
Product Color
Blue
Number Of Conductors
8-Conductor

Description

Voice and Data Patch Cord, Cable Shape Round, Conductor Gauge 24 AWG, Jacket Color Blue, Overall Length 3 ft, Performance Category 6, Shielded Unshielded, Fire Rating Commercial, Jacket Material PVC, Standards ANSI/TIA/EIA-568-C.2, EU RoHS Compliant, ISO 11801/60603-7-41, Transmission Speed 10 GBps, NEC Article and Type 800 CM, End 1 Boot Type Clear Boot, End 2 Boot Type Clear Boot, End 2 Connection Type RJ45, End 1 Connection Type RJ45, Cable Diameter 0.2 in, Insulation Material PVC
