- Item
- PDU
- Type
- Monitored
- Receptacle Configuration
- (3) 5-15/20R, (36) C13, (6) C19
- Plug Configuration
- L21-30P
- Standards
- RoHS Compliant; TAA Compliant
- Voltage
- 208V
- Max. Amps
- 24A
- NEMA Plug Configuration
- NEMA L21-30P
- Housing Material
- Metal
- Mounting Style
- Vertical Rackmount/0U
- Number of Outlets
- 45
- Power Indicator
- Yes
- NEMA Receptacle Configuration
- (3) NEMA 5-15/20R; (36) NEMA C13; (6) C19
- Frequency
- 50/60 Hz
- Input Voltage
- 230 V AC
- Package Contents
- Monitored PDU3VN10L2130 36-Outlets 8.6kW PDU, Cord Retention Brackets, Rack Mounting Brackets, Owner's Manual
- Receptacle Detail
- 6 x IEC 60320 C19, 30 x IEC 60320 C13
- Mounting Orientation
- Vertical
- PDU Type
- Monitored
- Mount Type
- Rack-mountable
- Output Voltage
- 208 V AC
- Product Type
- PDU
- Power Rating (Watt)
- 8600 W
- Material of Construction
- Metal
- PDU Form Factor
- Vertical (0U)
- Frequency Compatibility
- 50 / 60 Hz
- Package Includes
- PDU3VN10L2130 8.6kW 208/120V 3-Phase Monitored PDU, 10 ft. cord;(36) C13/C14 plug-lock inserts;(6) C19/C20 plug-lock inserts;Spare mounting buttons;(2) Conventional mounting brackets;Configuration cable for network interface;Button/bracket-mounting hardware;Owner's manual
- Input Phase
- 3-Phase
- Output Capacity Details
- 8.6kW (208V) total capacity; 13.9A max per breakered outlet bank; 12A max per C13 outlet

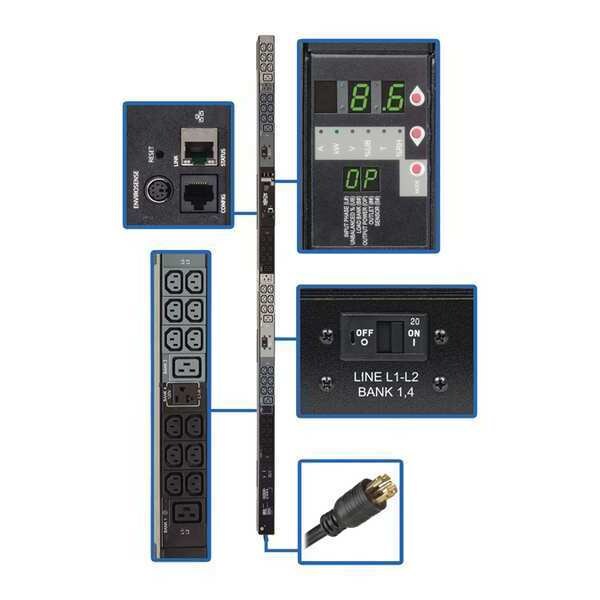

- Front Panel LCD Display
Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)
- Form Factors Supported
- Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
- Reported Load Segments
Supports monitoring of input current per phase (L1, L2, L3) and output current for each output load bank (B1-B6); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black C13/C19 outlets (B1); L2-L3 feeds dark-gray C13/C19 outlets (B2); L3-L1 feeds light-gray C13/C19 outlets (B3); L1-N feeds black 5-20R outlet (B4); L2-N feeds dark-gray 5-20R outlet (B5); L3-N feeds light-gray 5-20R outlet (B6)
- Operating Temperature Range
- 0C ~ 40C (32F ~ 104F)
- Storage Temperature Range
- -15°C to +50°C (+5°F to +122°F)
- Overload Protection
- 3 20A double-pole circuit breakers (1 per output phase)
- Network Compatibility
- 10 Mbps; 100 Mbps (Fast Ethernet)
- Maximum Input Amps
- 24
- Communications Cable
- RJ45-to-DB9 configuration/console Access cable
- Current Measurement Accuracy (Amps)
- +/-1%
- Power Measurement Accuracy (Watts)
- +/-1%
- Operating Elevation (ft.)
- 0-10,000
- Output Nominal Voltage
- 120; 208
- Output Receptacles
- (3) 5-15/20R; (36) C13; (6) C19
- Output Receptacle Details
- 5-15/20R outlets provide 120V output; C13 and C19 outlets provide 208V output
- Front Panel LEDs
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); 3 additional multi-color LEDs offer power availability information for each pair of output load banks (Bank 1&4 / Bank 2&5 / Bank 3&6): GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)
