No Product Image Available

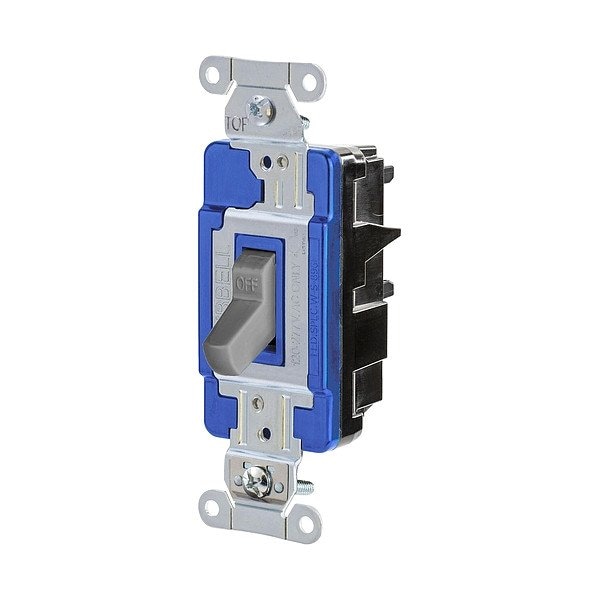

Wall Switch, 1/2 hp, Toggle, 15 A, Gray

  • Mfr # HBL1203STGY

  • Zoro # G816437707

product price:  $32.59
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Color
Gray
Switch Function
Maintained
Wiring Method
Back
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL1203STGY
Zoro #
G816437707
UPC #
783585963556
Country of Origin
China

Dimensions

Switch Depth
1.5 in
Overall Width
1.4 in
Switch Height
4.2 in
Overall Height
4.2 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Color
Gray
Switch Function
Maintained
Wiring Method
Back
Standards
CSA Certified, Fed Spec, UL Listed
Features
Back Wired Screwless Termination for Faster Termination Time, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Strip Gauge for Accurate Wiring
Housing Material
Polycarbonate
Market
Industrial
For Environment
Industrial
Voltage Rating
120/277V AC
Contact Material
Silver Alloy
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Strap Material
Brass
Current Rating
15 A
Grounding
Grounded
Wire Connection Type
Spring Clamp Terminals
Illuminated
No
Pilot Light
No
Horsepower Rating
1/2 hp
Nightlight
No
Resistance Properties
Impact Resistant
Number of Switches
1

Description

Wall Switch, Color Gray, Current Rating 15 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 1/2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Impact Resistant, Standards CSA Certified, Fed Spec, UL Listed, Strap Material Brass, Switch Style Toggle
