Shop HUBBELL WIRING DEVICE-KELLEMS

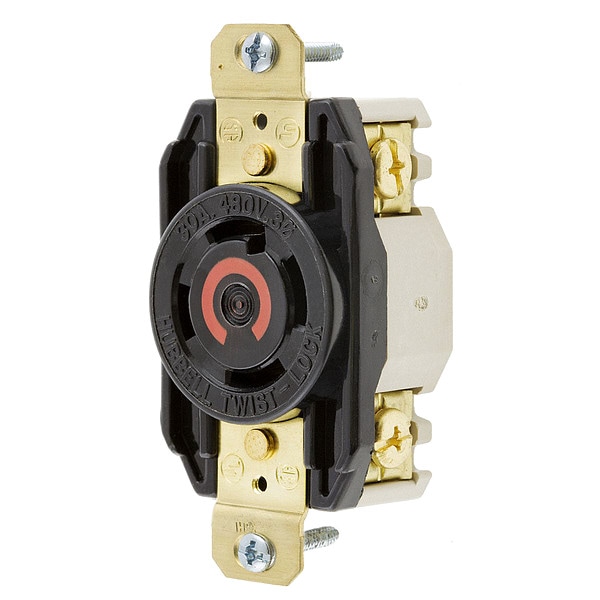

Locking Receptacle, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL2730

  • Zoro # G1596262

product price:  $70.67
/ea

Key Features

NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2730
Zoro #
G1596262
UPC #
783585236155
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#10 AWG

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Grade
Industrial
Special Features
Corrosion resistant
Mounting Type
Flush Mount
IP Rating
IP20
Wiring Style
Standard
Material
Nylon
Horsepower Rating
10 hp
Polarized
Yes
Maximum Operating Temperature
85 Degrees C
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
1
Market
Industrial
Includes Mounting Hardware
Yes
Shrouded
No
For Environment
Dry
Number of Gangs
1
For Location
Indoor
Housing Material
Nylon
AFCI
No
Includes
Mounting Hardware
Contact Material
Brass
Connection Orientation
Straight
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Spring Material
.040" Brass
Lock Type
Twist-lock
Base Material
Nylon Polyester
Terminal Designations
Terminals identified in accordance with UL 498
Amps
30

Description

• High-impact, abuse-resistant nylon face
• Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
• Face color coding by voltage facilitates locating and mating of proper devices
• All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
