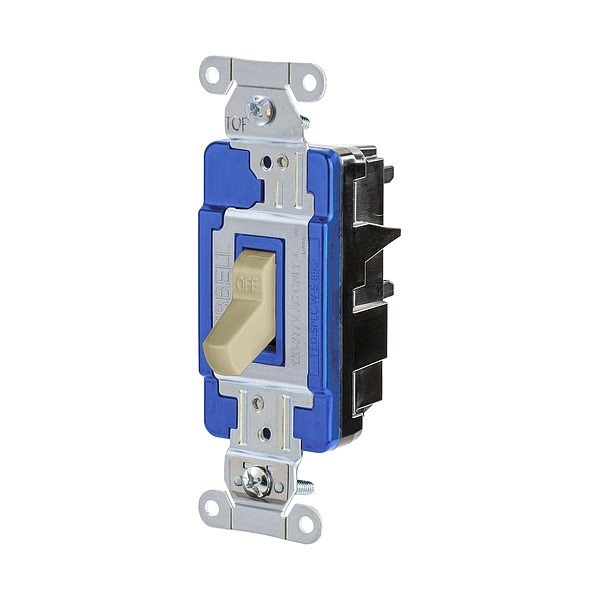

Wall Switch, 1/2 hp, Toggle, 15 A, Ivory

  • Mfr # HBL1201STI

  • Zoro # G916437782

product price:  $22.49
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Standards
CSA Certified, Fed Spec, UL Listed
Features
Back Wired Screwless Termination for Faster Termination Time, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Strip Gauge for Accurate Wiring
Wiring Method
Back
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL1201STI
Zoro #
G916437782
UPC #
783585963495
Country of Origin
China

Dimensions

Overall Height
4.2 in
Minimum Wire Size
14 AWG
Overall Width
1.4 in
Switch Depth
1.5 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Switch Height
4.2 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Standards
CSA Certified, Fed Spec, UL Listed
Features
Back Wired Screwless Termination for Faster Termination Time, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Strip Gauge for Accurate Wiring
Wiring Method
Back
Switch Function
Maintained
Color
Ivory
Current Rating
15 A
For Environment
Industrial
Voltage Rating
120/277V AC
Housing Material
Polycarbonate
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Contact Material
Silver Alloy
Strap Material
Brass
Market
Industrial
Grounding
Grounded
Wire Connection Type
Spring Clamp Terminals
Horsepower Rating
1/2 hp
Resistance Properties
Impact Resistant
Number of Switches
1
Pilot Light
No
Illuminated
No
Nightlight
No

Description

SP TOG, IND, ST, 15A 120/277V, IV
