Item

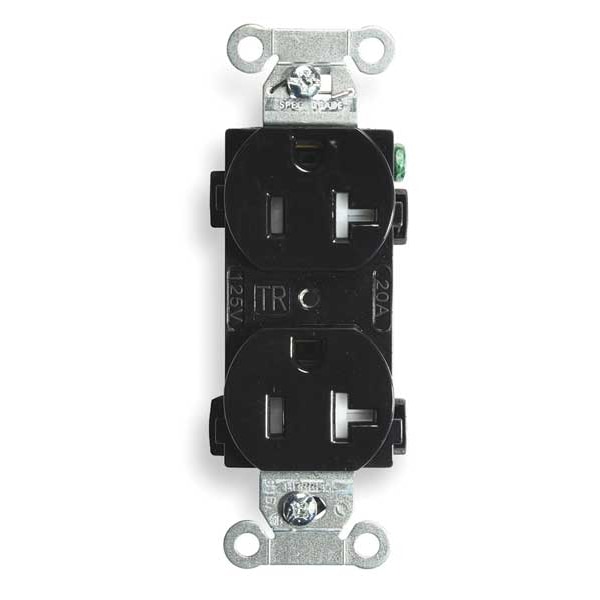

Straight Blade Receptacle
NEMA Receptacle Configuration
5-20R
Wire Connection Type
Screw Terminals
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Application Environment
Commercial
Sub-Category
Duplex Receptacles
Mounting Type - Plugs and Receptacles
Flush
Amps - Plugs and Receptacles
20 A
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Standard Duplex
Item - Plugs and Receptacles
Receptacle
Voltage - Plugs and Receptacles
125V AC
Wiring Method - Plugs and Receptacles
Side
Weather Resistant - Plugs and Receptacles
No
Color - Plugs and Receptacles
Black
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Dielectric Voltage
Withstands 2,000V minimum
Terminal Screw Material
#8-32 Brass, Multiple Drive
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Power Contacts Material
.031" (.8) Phosphor Bronze
Auto Ground Clip Material
.032" (.8) Steel Wire
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Product Type
Flush-receptacles
Mounting Strap Material
.040" (1) Steel (Galvanized)
Receptacle Grade
Commercial Series Specification Grade, Tamper Resistant
Current Interrupting
Certified for current interrupting at full rated current
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
Poles and Wires
2 Pole, 3-Wire Grounding
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Ground Screw Material
#8-32 Brass, Multiple Drive
Mounting Screw Material
Steel-Zinc Plated
Series
Commercial Specification Grade
Material - Mounting Hardware
Screw Mounting
Application
Commercial Specification Grade
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - UL 94 V-2
Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
Mechanical - Product Identification - Ratings are a permanent part of the device
Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
Certified to CSA, C22.2, No. 42
NEMA® WD-6 Compliant
UL Listed to UL498 File No. E2186
Dielectric Strength
Withstands 2,000V minimum
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
