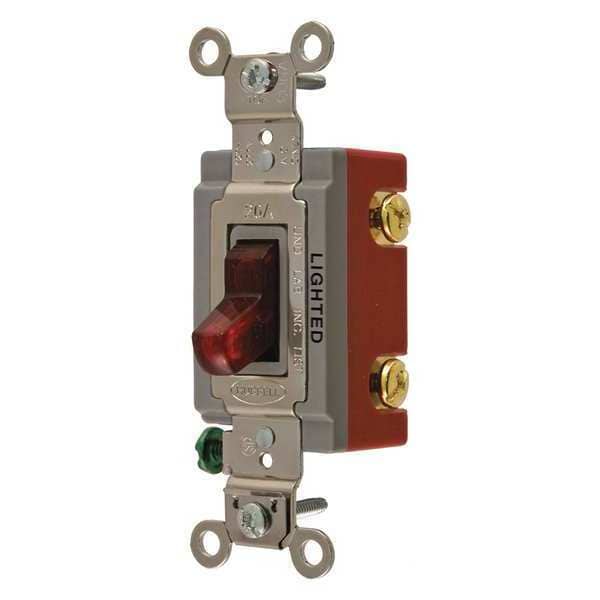

Hubbell Wiring Device-Kellems An Illuminated Light Swith Lig HBL1221ILR - main

An Illuminated Light Swith Lig

  • Mfr # HBL1221ILR

  • Zoro # G0800305

product price: $51.17
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Color
Red
Switch Function
Maintained
Wiring Method
Back, Side
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1221ILR
Zoro #
G0800305
UPC #
783585434537
Country of Origin
United States

Dimensions

Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.86 in
Switch Height
1.9 in
Mount Hole Center-to-Center Height
3.3 in
Overall Height
1.9 in
Overall Width
1.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Width
1.31 in
Height
1.86 in
Length
4.06 in

Details

Item
An Illuminated Light Swith Lig
Switch Type
Single Pole
Switch Style
Toggle
Color
Red
Switch Function
Maintained
Wiring Method
Back, Side
Voltage
120/277V AC
Standards
UL Listed
Voltage Rating
120-277 VAC
Type
Toggle
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Current Rating
20 A
Carton Quantity
10
Series
Extra Heavy Duty
Style
Single Pole
Amperage
20 A
Temp. Rise
30°C maximum at rated current
Application
Back and Side Wired
Indicator
Light On with Load Off
Number Of Poles
Single Pole
Connectivity
Back and Side Wired
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Minimum Operating Temperature
-40 Degrees F
Contact Material
Silver Alloy
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 Degrees C
Illuminated
Yes
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Housing Material
Thermoplastic
Market
Industrial
Number of Switches
1
Flammability
UL 94V-2
Max. Continuous Current
20A
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Working Voltage
277V AC
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Switch Handle Positions
2
Switch Grade
Industrial
Nylon Switch Plate
NP1R
Product Type
Toggle-switches
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload
Minimum 4.8 times rated current for 100 cycles
Temperature Rise
30°C maximum at rated current
Toggle Color
Red
Terminal Accommodations
#14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Wiring Style
Back and Side Wired
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Amperage Rating
20 A
Voltage Rating Description
120-277 VAC
Current / Amperage Rating
20 A

Description

An Illuminated Light Swith Lig, Color Red, Current Rating 20 A, Illuminated Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Contact Material Silver Alloy
