Shop HUBBELL WIRING DEVICE-KELLEMS

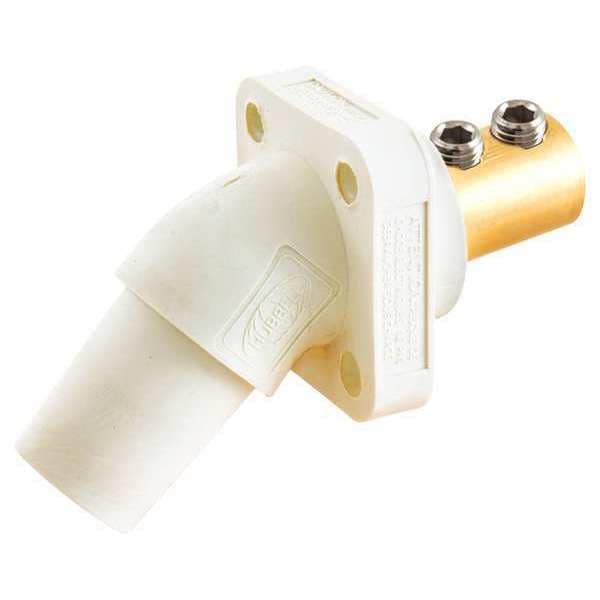

Angled Receptacle, White, Double Set Screw

  • Mfr # HBLFRAW
  • Zoro # G4818278
product price:
$
58.73
/ea

Key Features

Type
Angled Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBLFRAW
Zoro #
G4818278
UPC #
-
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Maximum Wire Size
4/0 AWG
Minimum Wire Size
4 AWG

Details

Item
Single Pole Receptacle
Type
Angled Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
4x
Color
White
Single Pole Device Style
Taper Nose
Mounting
Screw Mount
Standards
cULus Listed, UL Listed
Material
Thermoplastic Elastomer
Conductor Material
Brass
Cable Range
4 to 4/0
Fits
16 Series Male
Amps AC/DC
400AC/DC
Gender
Female
Compatible with Series
16
Housing Color
White
Connection Orientation
Angled
Flange Shape
Square
Contact Material
Brass
End Type
Taper Nose
Housing Material
Thermoplastic Elastomer
Terminal Connection Type
Double Set Screw
Phase
Single
NEMA Enclosure Rating
12, 3R, 4X
Mounting Style
Through Hole Mounting
Amperage Rating
400 A
Style
Double Set Screw Female
Voltage Rating Description
600V AC/DC
Current / Amperage Rating
400 A

Description

The HUBBELL Angled Receptacle, White, Double Set Screw is a single pole device intended for temporary electrical power distribution. This angled receptacle includes a double set screw terminal connection and is compatible with Series 16 devices. It accommodates cable sizes from 4 AWG to 4/0 AWG and supports operation at up to 400 amps (AC/DC) and up to 600 volts. The unit has a female connection orientation with a taper nose end type.


Key Features of the HUBBELL Angled Receptacle:

  • Amperage Rating: Rated for up to 400 A (AC/DC)

  • Voltage Rating: Supports up to 600V AC / 250V DC

  • Cable Range: Accepts wire sizes from #4 to 4/0 AWG

  • Terminal Connection Type: Double set screw design allows for wire termination

  • Connection Orientation: Angled configuration may assist with installation in limited space

  • Contact Material: Brass contacts

  • Housing Material: Thermoplastic elastomer housing for durability

  • NEMA Enclosure Ratings: Meets NEMA Type 12, 3R, and 4X requirements for protection against dust, water, and corrosion

  • Mounting Style: Through hole mounting with screw mount flange (square shape)

  • Compatible Series: Designed for use with Series 16 components; fits Series 16 male connectors

  • Standards Compliance: cULus Listed and UL Listed
