Shop HUBBELL WIRING DEVICE-KELLEMS

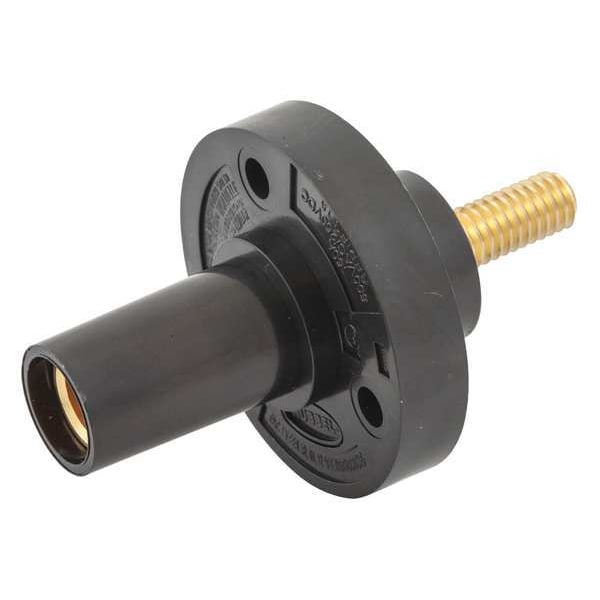

Receptacle, Stud, Blk, Taper Nose, Female

  • Mfr # HBL15FRSBK

  • Zoro # G6195533

product price:  $34.90
/ea

Key Features

Type
Receptacle Stud Type
Series
15
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
150 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL15FRSBK
Zoro #
G6195533
UPC #
783585458274
Country of Origin
Mexico

Dimensions

Power Terminals Wire Size
#8 to #2 AWG
Maximum Wire Size
2 AWG
Overall Width
0.86 in
Minimum Wire Size
8 AWG
Overall Length
2.82 in
Display Size
Standard Sized Product
Wire Size
#4 AWG Type SC/PPC Wire
Threaded Stud Termination Length
0.8 in
Stud Thread Size
5/16"-18
Wire Rope Length
2.82 in

Details

Item
Single Pole Receptacle
Type
Receptacle Stud Type
Series
15
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Amps AC/DC
150AC/DC
Single Pole Device Style
Taper Nose
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Color
Black
Mounting
Threaded Stud
Conductor Material
Brass
Fits
UL1691
Material
Thermoplastic Elastomer
Amps AC
150 A
Housing Material
Thermoplastic Elastomer
Compatible with Series
15
Contact Material
Brass
Phase
Single
For Location
Indoor
Terminal Connection Type
Threaded Stud
End Type
Taper Nose
NEMA Enclosure Rating
12, 3R, 4X
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Gender
Female
Housing Color
Black
Mounting Style
Through Hole Mounting
Flange Shape
Round
Application
Extra Heavy Duty Industrial
Current / Amperage Rating
150 A
Style
Female
Number Of Poles
1-Pole
Item Type
Female Receptacle
Amperage Rating
150 A
Performance
Electrical - Amperage Rating - 150A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #8 to #2 AWG
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
90000
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Material - Mounting Hardware
Screw Mounting
Connectivity
Threaded Stud
Number Of Wires
None
Voltage Rating Description
600V AC/DC

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Threaded Stud Termination
• 150 Amp Series
• Black
