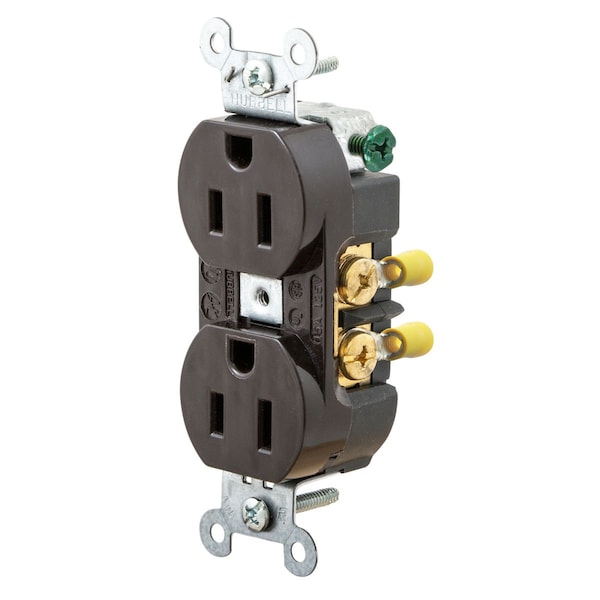

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Mfr # HBL5242RT
Zoro # G600622616

$12.15

Key Features

Receptacle Type

Duplex

NEMA Receptacle Configuration

5-15R

Current Rating

15 A

Voltage Rating

125V AC

Phase

Single

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

HBL5242RT

Zoro #

G600622616

UPC #

783585434735

Country of Origin

United States

Details

Item

Straight Blade Receptacle

Receptacle Type

Duplex

NEMA Receptacle Configuration

5-15R

Current Rating

15 A

Voltage Rating

125V AC

Phase

Single

Number of Poles

Number of Wires

Wire Connection Type

Screw Terminals

Wiring Method

Back, Side

Grounding

Grounded

Housing Color

Brown

Mount Type

Flush

Standards

CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596

Flange Type

Non-Flanged

Horsepower

0.5

Receptacle Style

Duplex

Receptacle Grade

Heavy Duty Spec Grade

Face Shape

Traditional

Ground Screw Material

#8-32 Brass, Multiple Drive (Green)

Poles and Wires

2 Pole, 3-Wire Grounding

Product Type

Flush-receptacles

Auto Ground Clip Material

Stainless Steel

Terminal Screw Material

#8-32 Brass /Ni plated for neutral

Device Color

Brown

Mounting Screw Material

Steel-Zinc Plated

Terminal Accommodation

#14-#10 AWG copper stranded or solid conductor only

Face Style

Finder Groove

Power Contacts Material

.037" (.9) Phosphor Bronze

Certification

UL Listed, File E2186, Guide RTRT Fed Spec WC596G, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 where applicable

Mounting Strap Material

.050" (1.3) Brass

Flammability

Top: UL 94V-2, Base: UL 94V-0, Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.

Dielectric Voltage

Withstands 2,000V minimum

Base Material

Reinforced PET

Terminal Identification

Terminals identified in accordance with UL 498 and CSA

Rating

15A, 125V

Operating Temperatures

Maximum continuous 75°C; minimum -40°C (w/o impact)

Temperature Rise

Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..

Current Interrupting

Certified for current interrupting at full rated current

Other Available Colors

Brown, Gray, Ivory, White,

Top Material

Nylon

Standard

NEMA

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V,5-15R, Brown, Single Pack, Ring Terminal Mod
