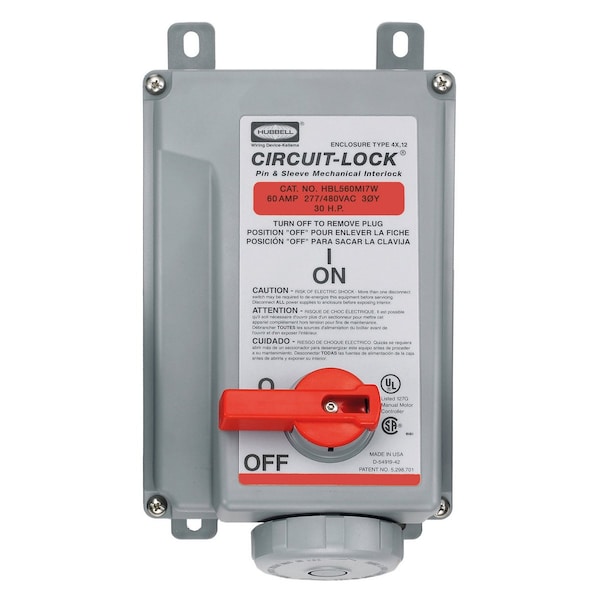

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 60A 3-Phase Wye 277/480V AC

Mfr # HBL560MI7W
Zoro # G900701127

2,078.99

Free Shipping & Returns

Key Features

Phase

Number of Poles

Number of Wires

Color - Plugs and Receptacles

Red

NEMA Rating

4X, 12

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: HBL560MI7W
Zoro #: G900701127
UPC #: 783585406169
Country of Origin: United States

Dimensions

Wire Size: 2 to 10 AWG
Display Size: Standard Sized Product

Details

Phase: 3Y
Number of Poles: 4
Number of Wires: 5
Color - Plugs and Receptacles: Red
NEMA Rating: 4X, 12
Standards: UL Listed, CSA Certified, UL746C
Material: Thermoplastic
Voltage: 277/480V
Amps - Plugs and Receptacles: 60 A
Color: Red
Features: IEC Mechanical Interlock, UV Stabilized
Type: Watertight Receptacle
Body Material - Pin and Sleeve: Valox
HP: 30
Application: High Ampacity Watertight Connections
Operating Temp. Range: -40Â° C to 75Â° C
IP Rating: IP67
Amperage Rating: 60 A
Material - Mounting Hardware: Screw Mounting
Series: Unfused Circuit-Lock
Voltage Rating Description: 3 Phase Y 277/480 VAC
Item Type: Mechanically Interlocked Single
Wattage: 28800
OEM Brand Name: Hubbell Wiring Device-Kellems
Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 Classification Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). Environmental - Operating Temperature - Max. Continuous +75°C Min. Continuous -40°C Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External adjustable feet Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
Environmental Conditions: Watertight
Current / Amperage Rating: 60 A
Industry Standard(s): UL Listed
Connectivity: Pressure Terminal Screws
Current Rating: 60 A
Style: Standard Service

Description

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Mechanically Interlocked Receptacle,60A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws,Red, Watertight
