  5. Combination Devices, Residential Grade, Decorator Series, 1) Single Pole Rocker, 1) Three Way Rocker, 15A 120V AC, Side Wired

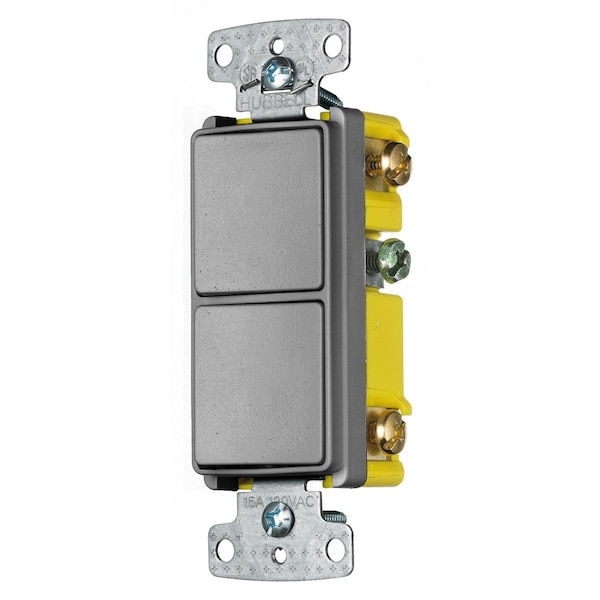

Hubbell Wiring Device-Kellems Combination Devices, Residential Grade, Decorator Series, 1) Single Pole Rocker, 1) Three Way Rocker, 15A 120V AC, Side Wired RCD103GY - main

Combination Devices, Residential Grade, Decorator Series, 1) Single Pole Rocker, 1) Three Way Rocker, 15A 120V AC, Side Wired

  • Mfr # RCD103GY

  • Zoro # G000701720

product price:  $47.39
/ea

Key Features

Application
Residential
Voltage Rating
120/277V AC kV
Voltage Rating Description
120/277V AC kV
Item Type
Decorator Switch Combo Devices
Contact Rating
15A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RCD103GY
Zoro #
G000701720
UPC #
883778110603
Country of Origin
China

Dimensions

Display Size
Standard Size

Details

Application
Residential
Voltage Rating
120/277V AC kV
Voltage Rating Description
120/277V AC kV
Item Type
Decorator Switch Combo Devices
Contact Rating
15A
Current / Amperage Rating
15 A
Material - Mounting Hardware
Mounting Screws
Connectivity
Side Wired
Number Of Poles
1) Single Pole, 1) Three Way
Action
Snap Switch
Operating Cycles
30,000 Minimum
Amperage Rating
15 A
Wattage
4155
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Actuator
Rocker
Current Rating
15 A
Contact Configuration
Two Position
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Performance
Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute Electrical - Endurance - 30,000 cycles minimum Electrical - Max. working voltage - 120V Electrical - Overload - 1.5 times rating Environmental - Flammability - UL V0 Environmental - Operating temperatures - Maximum continuous 60°C minimum -20°C (without impact) Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only push wire: #14 AWG solid copper wire only
Industry Standard(s)
CSA Certified UL Listed E3896

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Combination Devices, Residential Grade, Decorator Series, 1) Single PoleRocker, 1) Three Way Rocker, 15A 120V AC, Side Wired, Gray
