  9. Connector, 3R, 4X, 12, Female, Black, 8-2

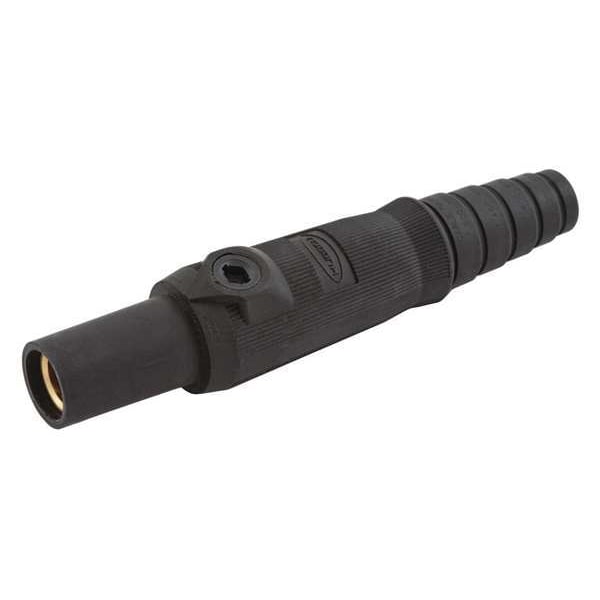

Hubbell Wiring Device-Kellems Connector, 3R, 4X, 12, Female, Black, 8-2 HBL15FBK - main

Connector, 3R, 4X, 12, Female, Black, 8-2

  • Mfr # HBL15FBK

  • Zoro # G6065333

product price: $32.29
/ea

Key Features

Type
Plugs
Series
15
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
150 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15FBK
Zoro #
G6065333
UPC #
783585458373
Country of Origin
Mexico

Dimensions

Power Terminals Wire Size
#8 to #2 AWG
Overall Length
4.6 in
Overall Width
1 in
Maximum Wire Size
2 AWG
Minimum Wire Size
8 AWG
Display Size
Standard

Details

Item
Connector
Type
Plugs
Series
15
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Single Pole Device Style
Taper Nose
Conductor Material
Brass
Cable Range
8 to 2
Color
Black
Fits
UL1691
Material
Thermoplastic Elastomer
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Amps AC/DC
150AC/DC
Mounting
Plugs, Female
Amps AC
150 A
Housing Color
Black
Maximum Operating Temperature
75 Degrees C
Gender
Female
End Type
Taper Nose
Housing Material
Thermoplastic Elastomer
Compatible with Series
15
For Location
Indoor
Minimum Operating Temperature
-40 Degrees C
Contact Material
Brass
NEMA Enclosure Rating
12, 3R, 4X
Contact Type
Single Cam
Terminal Connection Type
Double Set Screw
Number Of Conductors
1 Conductor
Number Of Poles
1-Pole
Insulation
Insulated Body
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Conductor Range
#8 AWG to #2 AWG SC/PPC Wire
Material - Mounting Hardware
Cord Mounted
Application
Temporary Electrical Power
Amperage Rating
150 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Amperage Rating - 150A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #8 to #2 AWG
Style
Female
Item Type
Female Plug
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Connectivity
Set Screw
Current / Amperage Rating
150 A
Voltage Rating Description
600V AC/DC
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12

Description

The HUBBELL Connector, Series 15 Female Plug, for use in temporary electrical power distribution applications. This single pole connector accommodates #8 to #2 AWG wire and features a black thermoplastic elastomer housing with insulated body. It uses a double set screw terminal connection and is rated for up to 150 A at 600V AC or 250V DC. The connector meets multiple industry standards including ANSI/NFPA 70, UL Enclosure Types 3R, 4X, and 12.


Key Features of the HUBBELL Series 15 Female Connector:

  • Amperage/Voltage Rating: Rated for up to 150 A; supports up to 600V AC or 250V DC

  • Cable Range: Accepts #8 AWG to #2 AWG SC/PPC wire

  • Contact Material: Brass single cam contact

  • Terminal Connection Type: Double set screw design for conductor attachment

  • Housing Material: Black thermoplastic elastomer housing with insulated body

  • NEMA Enclosure Ratings: Compatible with NEMA Type 12, 3R, and 4X enclosures (indoor dry locations unless protected)

  • Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous operation

  • Mounting Style: Cord mounted female plug with taper nose end type

  • Standards Compliance: Meets National Electric Code (NEC), ANSI/NFPA 70; cUL Listed; UL1691 compatible
