  9. Receptacle, Double Set Screw, Green

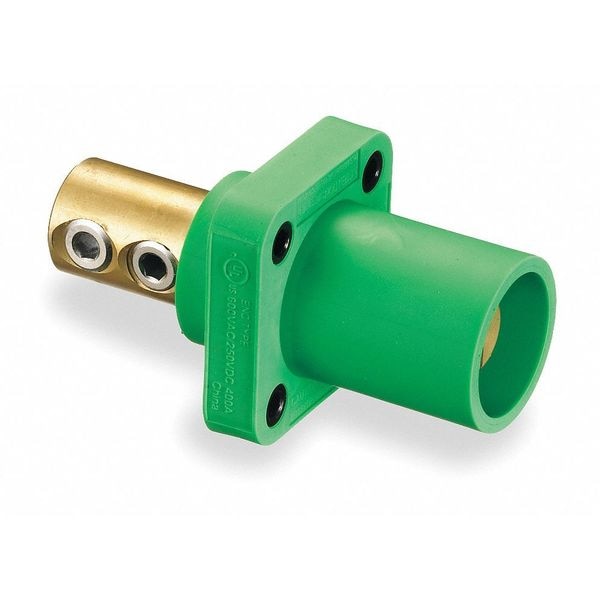

Hubbell Wiring Device-Kellems Receptacle, Double Set Screw, Green HBLMRGN - main

Receptacle, Double Set Screw, Green

  • Mfr # HBLMRGN

  • Zoro # G3383554

product price: $52.59
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLMRGN
Zoro #
G3383554
UPC #
783585112961
Country of Origin
China

Dimensions

Minimum Wire Size
4 AWG
Maximum Wire Size
4/0 AWG
Overall Width
2.2 in
Overall Length
4.1 in
Display Size
Standard Sized Product
Wire Size
#4 AWG to #4/0 AWG

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12K, 3R, 4X
Amps AC/DC
400AC/DC
Color
Green
Conductor Material
Brass
Single Pole Device Style
Taper Nose
Cable Range
4 to 4/0
Material
Thermoplastic Elastomer
Mounting
Panel
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Amps AC
400 A
Housing Material
Thermoplastic Elastomer
NEMA Enclosure Rating
12, 3R, 4X
Flange Shape
Square
Phase
Single
UL 94 Flammability Rating
HB
Housing Color
Green
Connection Orientation
Straight
Includes Mounting Hardware
Yes
For Location
Indoor
Terminal Connection Type
Double Set Screw
End Type
Taper Nose
Mounting Style
Through Hole Mounting
Contact Material
Brass
Gender
Male
Compatible with Series
16
Amperage Rating
400 A
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number Of Poles
1-Pole
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Style
Double Set Screw Male
Item Type
Flanged Single
Voltage Rating Description
600V AC/DC
Application
High Ampacity Connections
Wattage
240000
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Current / Amperage Rating
400 A
Connectivity
Screw Terminals

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Industrial Grade
• Male
• Receptacle
