  9. Connector, 3R, 4X, 12, Male, Blue, 8-2

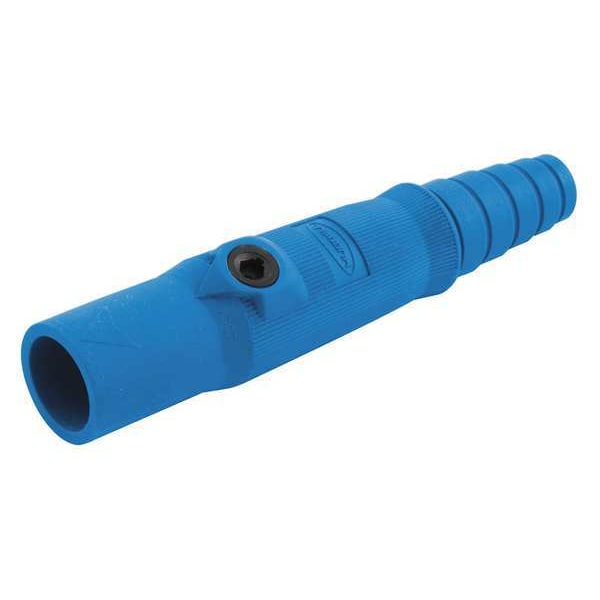

Hubbell Wiring Device-Kellems Connector, 3R, 4X, 12, Male, Blue, 8-2 HBL15MBL - main

Connector, 3R, 4X, 12, Male, Blue, 8-2

  • Mfr # HBL15MBL

  • Zoro # G6117797

product price: $33.49
/ea

Key Features

Type
Plugs
Series
15
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
150 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15MBL
Zoro #
G6117797
UPC #
783585458359
Country of Origin
Mexico

Dimensions

Power Terminals Wire Size
#8 to #2 AWG
Overall Length
4.54 in
Overall Width
1 in
Minimum Wire Size
8 AWG
Maximum Wire Size
2 AWG

Details

Item
Connector
Type
Plugs
Series
15
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Amps AC/DC
150AC/DC
Conductor Material
Brass
Single Pole Device Style
Taper Nose
Color
Blue
Fits
UL1691
Material
Thermoplastic Elastomer
Cable Range
8 to 2
Terminal Connection Type
Double Set Screw
NEMA Enclosure Rating
12, 3R, 4X
Compatible with Series
15; Insulgrip
Gender
Male
End Type
Taper Nose
Housing Color
Blue
Contact Material
Brass
Housing Material
Thermoplastic Elastomer
Style
Male
Amperage Rating
150 A
Performance
Electrical - Amperage Rating - 150A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #8 to #2 AWG
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Current / Amperage Rating
150 A
Voltage Rating Description
600V AC/DC

Description

The HUBBELL Connector, Series 15, is a single pole male connector intended for temporary electrical power distribution. It features a taper nose end and double set screw terminal connection, accommodating wire sizes from 8 AWG to 2 AWG. The housing is constructed from thermoplastic elastomer and includes an Insulgrip® style housing.


Key Features of the HUBBELL Connector, Series 15:

  • Amperage/Voltage Rating: Rated for up to 150 A at 600V AC or 250V DC

  • Cable Range: Accepts #8 to #2 AWG conductors

  • Terminal Connection Type: Double set screw terminal connection

  • Contact/Conductor Material: Brass contact/conductor material

  • NEMA Enclosure Ratings: For use with NEMA Type 3R, 4X, and 12 enclosures

  • Industry Standards: Complies with: ANSI/NFPA 70 (NEC), UL Listed, cUL Listed; UL1691 standard

  • Compatible with Series: Compatible with Series 15 devices; Insulgrip compatible

  • Overall Dimensions: Measures approximately 4.54 inches in length by 1 inch in width
