  9. Connector, 3R, 4X, 12, Male, Org, 2/0 to 4/0

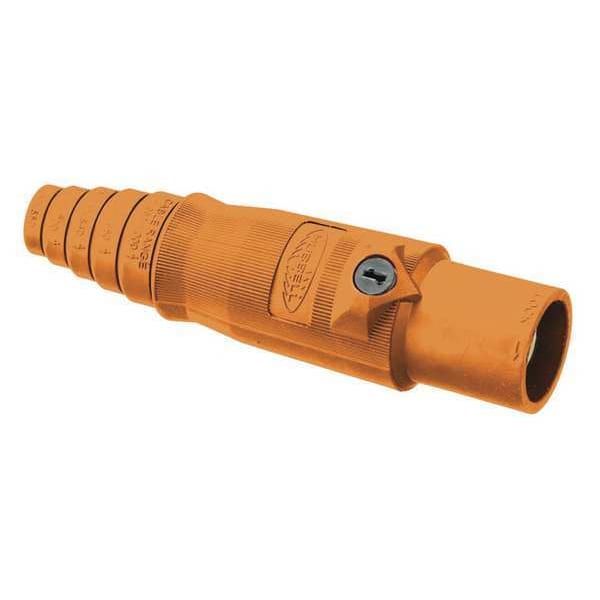

Hubbell Wiring Device-Kellems Connector, 3R, 4X, 12, Male, Org, 2/0 to 4/0 HBL400MO - main

Connector, 3R, 4X, 12, Male, Org, 2/0 to 4/0

  • Mfr # HBL400MO

  • Zoro # G6138702

product price: $46.69
/ea

Key Features

Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL400MO
Zoro #
G6138702
UPC #
783585112305
Country of Origin
China

Dimensions

Power Terminals Wire Size
2/0 to 4/0
Overall Width
1.95 in
Overall Length
7.01 in
Maximum Wire Size
4/0 AWG
Minimum Wire Size
2/0 AWG

Details

Item
Connector
Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Cable Range
2/0 to 4/0
Fits
UL1691
Conductor Material
Brass
Amps AC/DC
400AC/DC
Material
Thermoplastic Elastomer
Color
Orange
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Single Pole Device Style
Taper Nose
Amps AC
400 A
Housing Color
Orange
UL 94 Flammability Rating
HB
End Type
Taper Nose
Terminal Connection Type
Double Set Screw
Contact Type
Single Cam
Gender
Male
NEMA Enclosure Rating
12, 3R, 4X
Housing Material
Thermoplastic Elastomer
Compatible with Series
15; 16; Insulgrip
Contact Material
Brass
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - 2/0 to 4/0 AWG
Voltage Rating Description
600V AC/DC
Amperage Rating
400 A
Style
Male
Current / Amperage Rating
400 A

Description

The HUBBELL Connector, Series 16, is a single pole male connector intended for use in temporary electrical power distribution. It accommodates cable sizes from 2/0 to 4/0 AWG and features a taper nose end with double set screw terminal connections. The housing is constructed from thermoplastic elastomer and the contact material is brass, rated for operation at currents up to 400 A and voltages up to 600V AC or 250V DC.


Key Features of the HUBBELL Series 16 Single Pole Male Connector:

  • Amperage Rating: Rated for up to 400 A (AC/DC)

  • Cable Range: Accepts wire sizes from 2/0 AWG to 4/0 AWG

  • Contact Material: Brass single cam contacts

  • Terminal Connection Type: Double set screw design

  • Housing Material: Thermoplastic elastomer construction

  • NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12 requirements

  • Voltage Rating: Up to 600V AC / 250V DC maximum

  • Industry Standards: UL Listed; cUL Listed; ANSI/NFPA70; National Electric Code (NEC); UL Enclosure Types compliance

  • Compatible With: Series 15, Series 16, Insulgrip devices
