Plugs and Receptacles
Mfr # 16R26-1UH
Zoro # G022586756
product price:Â $45.79
/eaKey Features
Housing Material
Nylon
Standards
CSA, UL
Minimum Operating Temperature
-40 Degrees F
End Type
Taper Nose
Voltage Rating
600V AC, 600V DC
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
16R26-1UH
Zoro #
G022586756
UPC #
78477718148
Country of Origin
Mexico
Dimensions
Threaded Stud Termination Length
1.125 in
Maximum Wire Size
4/0 AWG
Flange Width
2.28 in
Flange Height
2.28 in
Minimum Wire Size
2 AWG
Overall Width
2.28 in
Overall Length
2.57 in
Stud Thread Size
5/16"-18
Description

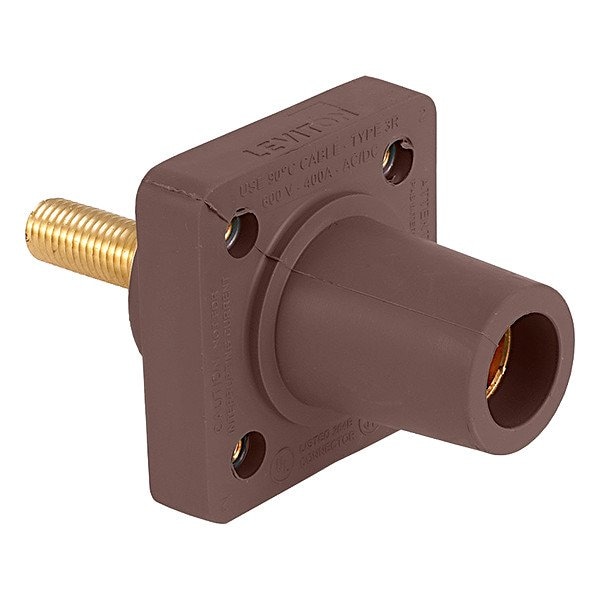

Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Female, Housing Color Brown, Housing Material Nylon, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
