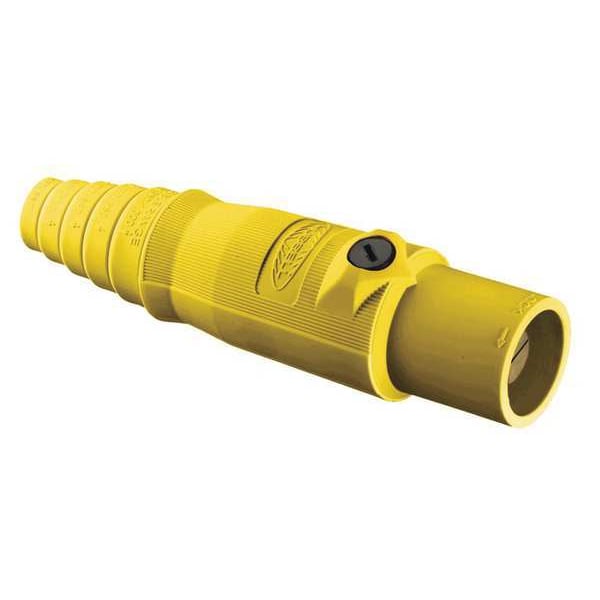

Hubbell Wiring Device-Kellems Connector, 3R, 4X, 12, Male, Yllow, 6 to 2/0 HBL300MY - main

Connector, 3R, 4X, 12, Male, Yllow, 6 to 2/0

  • Mfr # HBL300MY

  • Zoro # G6205875

product price: $46.69
/ea

Key Features

Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
300 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL300MY
Zoro #
G6205875
UPC #
783585112152
Country of Origin
China

Dimensions

Power Terminals Wire Size
#6 to 2/0
Minimum Wire Size
6 AWG
Overall Width
1.95 in
Overall Length
7.01 in
Maximum Wire Size
2/0 AWG

Details

Item
Connector
Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
300 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Single Pole Device Style
Taper Nose
Conductor Material
Brass
Fits
UL1691
Material
Thermoplastic Elastomer
Cable Range
6 to 2/0
Color
Yellow
Amps AC/DC
300AC/DC
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Amps AC
300 A
Contact Material
Brass
UL 94 Flammability Rating
HB
Housing Material
Thermoplastic Elastomer
Gender
Male
Terminal Connection Type
Double Set Screw
End Type
Taper Nose
Housing Color
Yellow
Compatible with Series
15; 16; Insulgrip
NEMA Enclosure Rating
12, 3R, 4X
Current / Amperage Rating
300 A
Amperage Rating
300 A
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Style
Male
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #6 to 2/0 AWG
Voltage Rating Description
600V AC/DC

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Insulgrip® Style Housing for Superior Gripping
• Non-Conductive Retaining Screw locks contacts in place
• Large Raised Alignment Arrow aids in the mating of devices
