  5. Connector, 3R, 4X, 12, Male, Ylw, 2/0 to 4/0

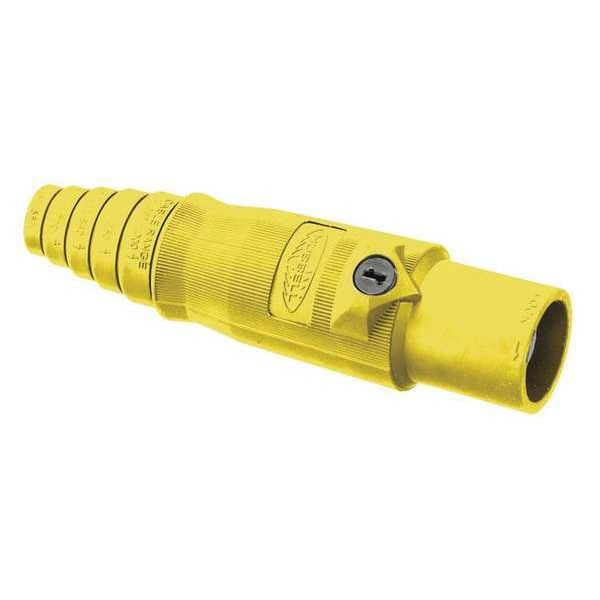

Hubbell Wiring Device-Kellems Connector, 3R, 4X, 12, Male, Ylw, 2/0 to 4/0 HBL400MY - main

Connector, 3R, 4X, 12, Male, Ylw, 2/0 to 4/0

  • Mfr # HBL400MY

  • Zoro # G6112827

product price:  $46.69
/ea

Key Features

Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL400MY
Zoro #
G6112827
UPC #
783585112336
Country of Origin
China

Dimensions

Power Terminals Wire Size
2/0 to 4/0
Maximum Wire Size
4/0 AWG
Overall Length
7.01 in
Minimum Wire Size
2/0 AWG
Overall Width
1.95 in

Details

Item
Connector
Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Material
Thermoplastic Elastomer
Amps AC/DC
400AC/DC
Cable Range
2/0 to 4/0
Fits
UL1691
Color
Yellow
Conductor Material
Brass
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Single Pole Device Style
Taper Nose
Amps AC
400 A
Housing Color
Yellow
End Type
Taper Nose
Housing Material
Thermoplastic Elastomer
UL 94 Flammability Rating
HB
Contact Material
Brass
NEMA Enclosure Rating
12, 3R, 4X
Contact Type
Single Cam
Terminal Connection Type
Double Set Screw
Gender
Male
Compatible with Series
15; 16; Insulgrip
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - 2/0 to 4/0 AWG
Voltage Rating Description
600V AC/DC
Current / Amperage Rating
400 A
Style
Male
Amperage Rating
400 A

Description

The HUBBELL Connector, Series 16, is a single pole male connector intended for use in temporary electrical power distribution applications. It accommodates cable sizes from 2/0 to 4/0 AWG and features a taper nose style with double set screw terminal connections. The housing is constructed from thermoplastic elastomer and includes an Insulgrip® style housing to assist with assembly and disassembly.


Key Features of the HUBBELL Series 16 Single Pole Male Connector:

  • Amperage Rating: Rated for operation at up to 400 A AC or DC

  • Voltage Rating: Up to 600V AC or 250V DC

  • Cable Range: Accepts wire sizes from 2/0 AWG to 4/0 AWG

  • Contact Material: Brass contacts with a single cam design; see manufacturer specifications regarding performance characteristics

  • Terminal Connection Type: Double set screw terminals designed to hold conductors in position

  • NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12 requirements

  • Standards Compliance: Listed under ANSI/NFPA 70 (NEC), UL/cUL standards, UL Enclosure Types, and UL94 HB flammability rating

  • Compatible With: Compatible with Series 15, Series 16, and Insulgrip devices; meets UL1691 specifications
