Plugs and Receptacles
Mfr # 16R19-UG
Zoro # G222587874
product price:Â $63.15
/eaKey Features
Flange Width
2.28 in
Standards
CSA, UL
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
3R
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16R19-UG
- Zoro #
- G222587874
- UPC #
- 78477716670
- Country of Origin
- Mexico
Dimensions
- Flange Width
- 2.28 in
- Minimum Wire Size
- 2 AWG
- Maximum Wire Size
- 4/0 AWG
- Flange Height
- 2.28 in
- Overall Length
- 3.72 in
- Overall Width
- 2.28 in
- Wire Rope Length
- 3.72 in
Description

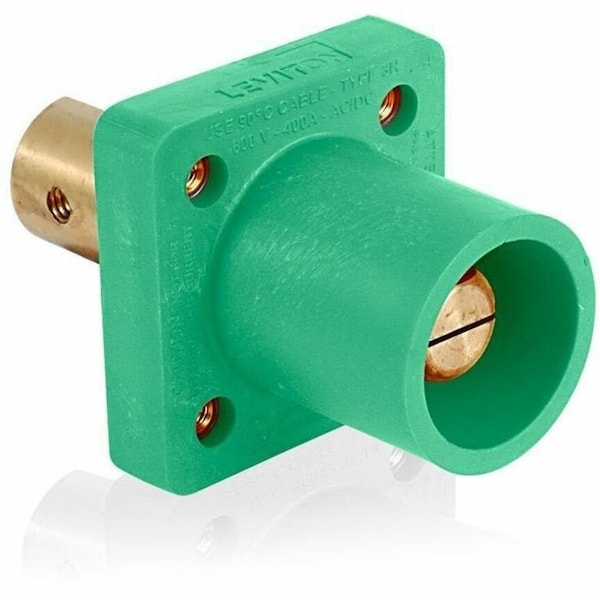

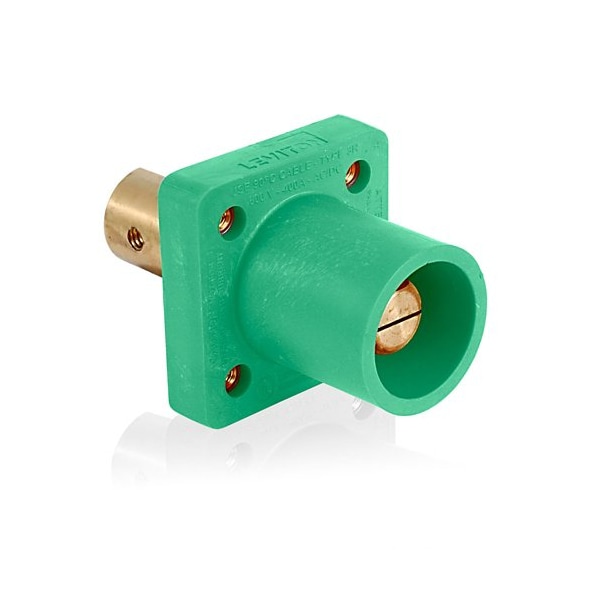

Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Male, Housing Color Green, Housing Material Nylon, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Half Round with Tapped Hole, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
