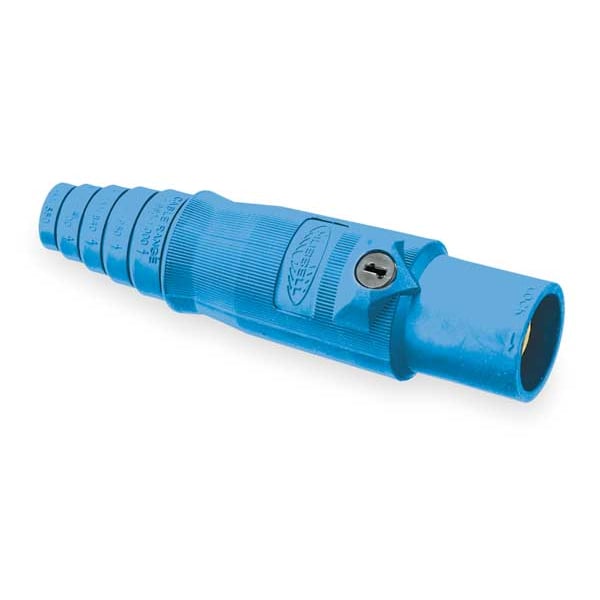

Hubbell Wiring Device-Kellems Connector, Double Set Screw, Blu, Male HBL400MBL - main

Connector, Double Set Screw, Blu, Male

  • Mfr # HBL400MBL

  • Zoro # G1482756

product price: $45.29
/ea

Key Features

Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL400MBL
Zoro #
G1482756
UPC #
783585112275
Country of Origin
China

Dimensions

Maximum Wire Size
4/0 AWG
Overall Length
7.01 in
Minimum Wire Size
2/0 AWG
Overall Width
1.95 in

Details

Item
Connector
Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12K, 3R, 4X
Color
Blue
Material
Thermoplastic Elastomer
Cable Range
2/0 to 4/0
Conductor Material
Brass
Single Pole Device Style
Taper Nose
Amps AC/DC
400AC/DC
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Amps AC
400 A
Contact Type
Single Cam
Gender
Male
End Type
Taper Nose
Contact Material
Brass
Terminal Connection Type
Double Set Screw
Housing Material
Thermoplastic Elastomer
Compatible with Series
15; 16; Insulgrip
Housing Color
Blue
UL 94 Flammability Rating
HB
NEMA Enclosure Rating
12, 3R, 4X
Current / Amperage Rating
400 A
Voltage Rating Description
600V AC/DC
Amperage Rating
400 A
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - 2/0 to 4/0 AWG
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Style
Male

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Insulgrip® Style Housing for Superior Gripping
• Non-Conductive Retaining Screw locks contacts in place
• Large Raised Alignment Arrow aids in the mating of devices
