  9. Connector, Double Set Screw, Grn, Male

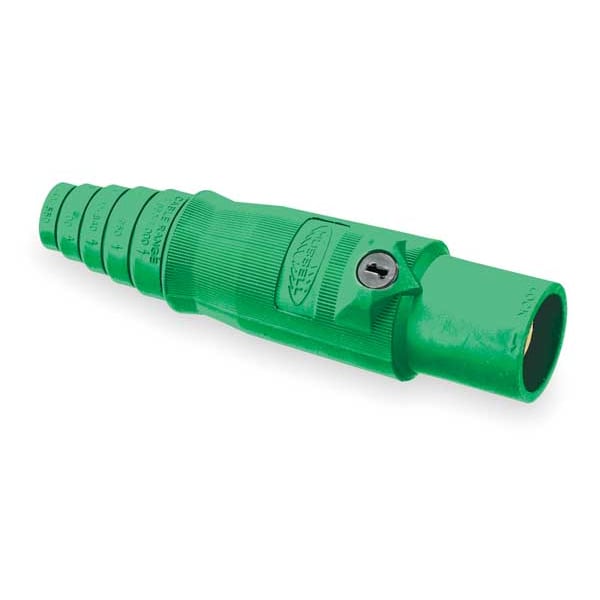

Hubbell Wiring Device-Kellems Connector, Double Set Screw, Grn, Male HBL400MGN - main

Connector, Double Set Screw, Grn, Male

  • Mfr # HBL400MGN

  • Zoro # G0553971

product price: $44.15
/ea

Key Features

Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL400MGN
Zoro #
G0553971
UPC #
783585112299
Country of Origin
China

Dimensions

Overall Length
7.01 in
Minimum Wire Size
2/0 AWG
Overall Width
1.95 in
Maximum Wire Size
4/0 AWG

Details

Item
Connector
Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12K, 3R, 4X
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Conductor Material
Brass
Amps AC/DC
400AC/DC
Cable Range
2/0 to 4/0
Material
Thermoplastic Elastomer
Color
Green
Single Pole Device Style
Taper Nose
Amps AC
400 A
Contact Type
Single Cam
End Type
Taper Nose
NEMA Enclosure Rating
12, 3R, 4X
UL 94 Flammability Rating
HB
Housing Material
Thermoplastic Elastomer
Contact Material
Brass
Gender
Male
Terminal Connection Type
Double Set Screw
Housing Color
Green
Compatible with Series
15; 16; Insulgrip
Amperage Rating
400 A
Style
Male
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Current / Amperage Rating
400 A
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - 2/0 to 4/0 AWG
Voltage Rating Description
600V AC/DC

Description

The HUBBELL Connector, Double Set Screw, Green, Male is a single pole connector intended for use in temporary electrical power distribution applications. It features a double set screw terminal connection and is compatible with Series 15 and 16 Insulgrip devices. The connector accommodates cable sizes from 2/0 to 4/0 AWG and supports up to 400 A at voltages of 600V AC or 250V DC. Its housing is constructed from thermoplastic elastomer for durability in demanding conditions.


Key Features of the HUBBELL Connector, Double Set Screw, Green, Male:

  • Amperage Rating: Rated for up to 400 A (AC/DC)

  • Cable Range: Accepts wire sizes from 2/0 AWG to 4/0 AWG

  • Terminal Connection Type: Double set screw design provides a mechanical connection to the conductor

  • Contact Material: Brass single cam contact is used for electrical conductivity

  • Housing Material: thermoplastic elastomer

  • NEMA Enclosure Ratings: Suitable for use in NEMA Types 3R, 4X, and 12 enclosures

  • Voltage Rating: Supports up to 600V AC or 250V DC operation

  • Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements; UL94 HB flammability rating

  • Mating Alignment Aid: Large raised alignment arrow assists device mating
