Shop HUBBELL WIRING DEVICE-KELLEMS

Connector, Non-NEMA, 600VAC/250VDC

  • Mfr # HBL15DMW
  • Zoro # G6957465
product price:
$
47.52
/ea

Key Features

Type
Gender Reversing
Series
15
Male/Female
Male-Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL15DMW
Zoro #
G6957465
UPC #
783585458687
Country of Origin
China

Dimensions

Overall Width
0.92 in
Overall Height
4.22 in
Display Size
Standard

Details

Item
Gender Reversing Connector
Type
Gender Reversing
Series
15
Male/Female
Male-Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Single Pole Device Style
Taper Nose
Amps AC/DC
150AC/DC
Material
Thermoplastic Elastomer
Fits
UL1691
Color
White
Conductor Material
Brass
Standards
cUL, UL
Amps AC
150 A
Mounting
Gender Reversing, Male-Male
Maximum Operating Temperature
75 Degrees C
For Environment
Dry
Gender Configuration
Male-Male
NEMA Enclosure Rating
12, 3R, 4X
Minimum Operating Temperature
-40 Degrees C
Contact Material
Brass
Housing Material
Thermoplastic Elastomer
Housing Color
White
Compatible with Series
15
Material - Mounting Hardware
Cord Mounted
Voltage Rating Description
600V AC/DC
Amperage Rating
150 A
Number Of Poles
1-Pole
Connectivity
Plug-In
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Temporary Electrical Power
Number Of Conductors
1 Conductor
Style
Male-Male
Item Type
Double Male Coupler
Insulation
Insulated Body
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Current / Amperage Rating
150 A
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.

Description

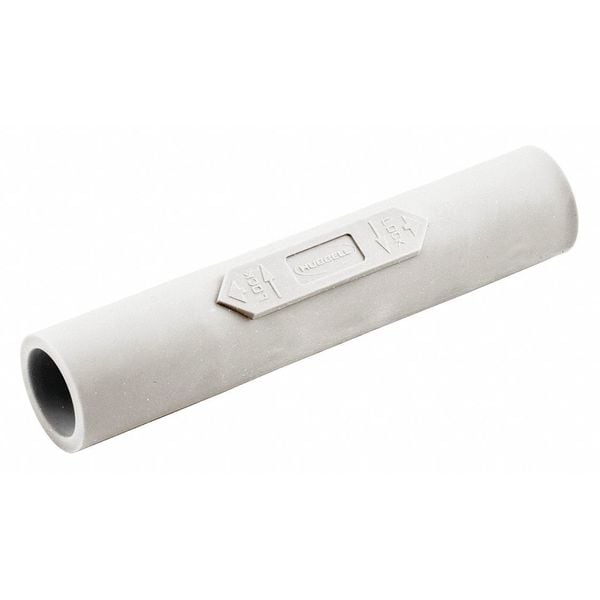

The HUBBELL Double Male Coupler is a single pole, plug-in connector intended for temporary electrical power distribution. This double connector has a male-to-male configuration and is compatible with Series 15 devices. It is rated for operation at 150 A, 600V AC / 250V DC and contains brass contacts and an insulated thermoplastic elastomer housing. The coupler is suitable for use in dry indoor conditions; additional protection may be required in other environments.


Key Features of the HUBBELL Double Male Coupler:

  • Amperage/Voltage Rating: Rated for 150 A, 600V AC / 250V DC applications

  • Connector Type: Double male (male-male), gender reversing style

  • Series Compatibility: Compatible with Series 15 single pole devices

  • Contact Material: Brass conductor and contact material

  • Housing Material: Thermoplastic elastomer body provides insulation

  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements

  • Standards Compliance: UL1691 listed; conforms to NEC, ANSI/NFPA70; cUL certified

  • Temperature Range: Operates from -40°C (minimum) to +75°C (maximum)
