Shop HUBBELL WIRING DEVICE-KELLEMS

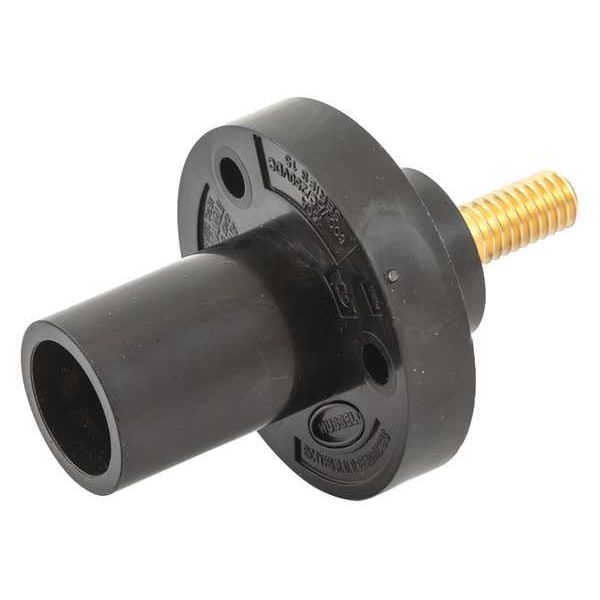

Receptacle, Single Pin, Male, Blk, Taper

  • Mfr # HBL15MRSBK

  • Zoro # G6084802

product price:
$
36.95
/ea

Key Features

Type
Receptacle, Stud Type
Series
15
Terminal Connection
Threaded Stud
Male/Female
Male
Current Rating
150 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL15MRSBK
Zoro #
G6084802
UPC #
783585458229
Country of Origin
Mexico
Item
Single Pole Receptacle
Type
Receptacle, Stud Type
Series
15
Terminal Connection
Threaded Stud
Male/Female
Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Conductor Material
Brass
Cable Range
8 to 2
Single Pole Device Style
Taper Nose
Fits
UL1691
Color
Black
Material
Thermoplastic Elastomer
Amps AC/DC
150AC/DC
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Mounting
Threaded Stud
Amps AC
150 A
Connection Orientation
Straight
Includes Mounting Hardware
Yes
For Location
Indoor
Housing Color
Black
Compatible with Series
15
Terminal Connection Type
Threaded Stud
Housing Material
Thermoplastic Elastomer
End Type
Taper Nose
NEMA Enclosure Rating
12, 3R, 4X
Contact Material
Brass
Phase
Single
Gender
Male
Flange Shape
Round
Mounting Style
Through Hole Mounting
Performance
Electrical - Amperage Rating - 150A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #8 to #2 AWG
Wattage
90000
Number Of Wires
None
Connectivity
Threaded Stud
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Current / Amperage Rating
150 A
Amperage Rating
150 A
Item Type
Male Inlet
Application
Extra Heavy Duty Industrial
Voltage Rating Description
600V AC/DC
Number Of Poles
1-Pole
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Material - Mounting Hardware
Screw Mounting
Style
Male

Description

The HUBBELL Single Pin Male Receptacle is a single pole device intended for use in industrial settings where temporary electrical power distribution is needed. This receptacle includes a straight connection orientation and threaded stud termination, and is compatible with Series 15 devices. It accommodates wire sizes from #8 to #2 AWG and is rated for up to 150 amps at 600V AC or 250V DC. The housing is constructed with a thermoplastic elastomer housing; suitable for indoor dry locations unless otherwise protected.


Key Features of the HUBBELL Single Pin Male Receptacle:

  • Amperage Rating: Rated for 150 A maximum (AC/DC)

  • Voltage Rating: Supports up to 600V AC or 250V DC

  • Cable Range: Accepts #8 to #2 AWG wire sizes

  • Connection Type: Threaded stud terminal connection with through hole mounting style

  • Material Construction: Brass conductor/contact material; thermoplastic elastomer housing

  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements

  • Standards Compliance: UL Listed, cUL Listed, ANSI/NFPA 70 (NEC), UL Enclosure Types listed

  • Pole Configuration: Single pole (1-pole) design; male inlet style with taper nose end type
