  11. Cord Connector, 1-1/4 in., Straight

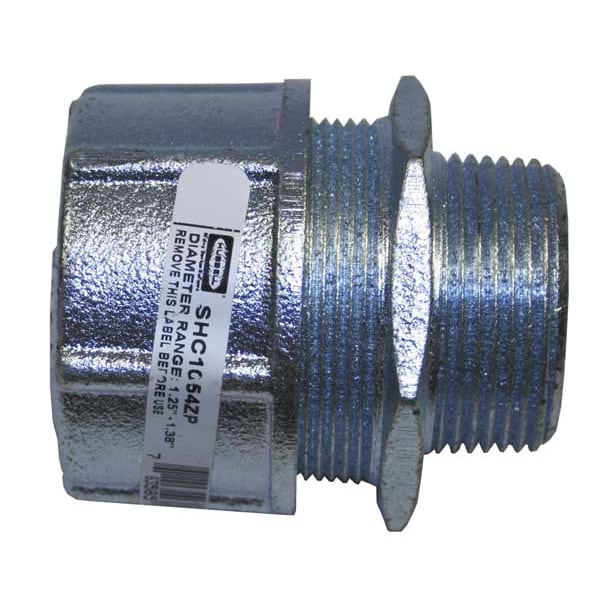

Hubbell Wiring Device-Kellems Cord Connector, 1-1/4 in., Straight SHC1054ZP - main

Cord Connector, 1-1/4 in., Straight

  • Mfr # SHC1054ZP

  • Zoro # G2349667

product price: $74.59
/ea

Key Features

Material
Iron
Box Connection
1 1/4 in MNPT
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Length
2.40"
Material - Cord Connector
Malleable Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1054ZP
Zoro #
G2349667
UPC #
783585496375
Country of Origin
China

Dimensions

Length
2.40"
Min. Throat Dia.
1.27"
Cord Dia. Range
1.25 in to 1.38 in
Length - Box to End of Connector
1 11/16 in
Length - External Strain Relief
No External Strain Relief
Hub Trade Size
1-1/4"
Hub Size
1 1/4 in MNPT
Overall Length
2 7/16 in
Thread Size
1 1/4 in
Compatible Conduit Trade Size
1 1/4 in
Form Size
F5
Cord Diameter Range
1.25"- 1.38" (31.7- 34.9)
Dimension C
.70" (17.8)
Dimension A A/C
2.40" (61.0)
Recommended Knockout Hole Size
1.72"- 1.77" (43.7-44.9)
Dimension E A/C
2.48" (63.0)
Dimension E A/F
2.19" (55.6)
Dimension B
1.70" (43.2) Ref.
Dimension D
1.27" (32.3) Throat Dia.
Display Size
1 1/4" NPT

Details

Item
Liquid Tight Cord Connector
Material
Iron
Box Connection
1 1/4 in MNPT
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Material - Cord Connector
Malleable Iron
Connector Type
Straight
Style - Connector
Straight
Number of Cords
1
Body Color - Cord Connector
Silver
Material - External Strain Relief
No External Strain Relief
Strain Relief Type
No External Strain Relief
Liquid Tight / Dust Tight
Liquid Tight
Gland Color Code
No Code
Standards
CSA Certified, Title 46-Part 111, UL 514B, United States Coast Guard Approval
Insulated
No
Item - Cord Connector
Liquid Tight Cord Connector
Male/Female
Male
For Use With
Kellems Wire Management
Maximum Operating Temperature
225 Degrees F
Body Color
Silver
For Maximum Cable OD
1.38 in
Bushing Material
Neoprene
Compatible Conduit Type
Liquid Tight Cord Connector
Liquid Tight
Yes
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Grommet Color Code
No Code
Collar Material
Iron
Connection Orientation
Straight
Environmental Rating
Hazardous Locations
For Minimum Cable OD
1.25 in
Minimum Operating Temperature
-30 Degrees F
Body Material
Iron
IP Rating
IP66
Thread Gender
Male
Thread Type
NPT Thread
Cord Connector Body Style
Straight Male
Material/Style
Malleable Iron
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Product Type
Cord Connectors
Plating
Cadmium
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Material - Mounting Hardware
Locknut or Tapped Opening
Industry Standard(s)
UL Listed
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Conductor Range
1.25-1.38 in (31.7- 34.9 mm)
Type
Straight Male
Application
Straight Male- Form 5
Item Type
Cord Connectors
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Number Of Conductors
Single
Series
Standard Duty

Description

Liquid Tight Cord Connector, Cord Dia. Range 1.25 in to 1.38 in, Box Connection 1 1/4 in MNPT, Material - Cord Connector Malleable Iron, External Strain Relief Material No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 11/16 in, Insulated No
