Shop HUBBELL WIRING DEVICE-KELLEMS

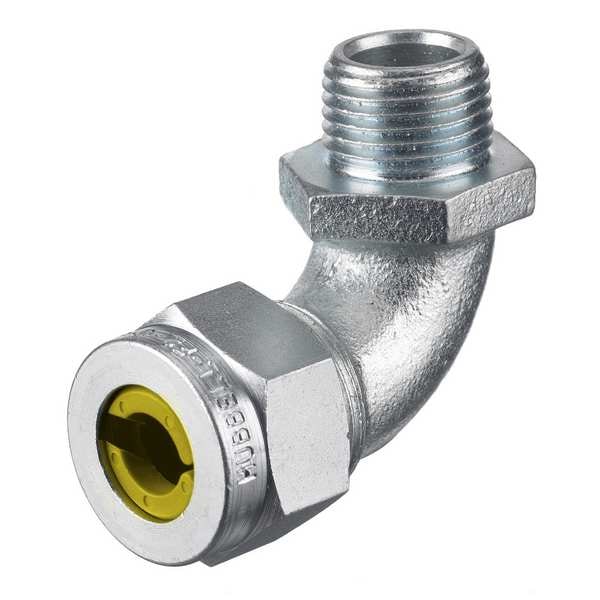

Liquid Tight Connector, 1in, 90 deg, Yellow

  • Mfr # NHC1041ZP

  • Zoro # G2349658

product price:
$
67.03
/ea

Key Features

Material
Steel
Box Connection
1 in MNPT
Body Color - Cord Connector
Silver
Length - Box to End of Connector
2 3/16 in
Standards
CSA LR27378, UL E54218(M)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NHC1041ZP
Zoro #
G2349658
UPC #
783585211411
Country of Origin
United States

Dimensions

Length - Box to End of Connector
2 3/16 in
Conduit Size
1"
Length
3-3/16"
Cord Dia. Range
0.63 in to 0.75 in
Length - External Strain Relief
No External Strain Relief
Hub Size
1 in
Form Size
F4
Thread Size
1 in
Compatible Conduit Trade Size
1 in
Dimension D
1.00" (25.4) Throat. Dia.
Dimension E A/C
1.72" (43.7)
Dimension E A/F
1.50" (38.1)
Dimension C
.70" (17.8) Ref.
Recommended Knockout Hole Size
1.36"- 1.41" (34.5-35.7)
Dimension B
3.20" (81.3)
Dimension G A/F
1.69" (42.8)
Cord Diameter Range
.63"- .75" (15.9- 19.0)
Dimension A
2.16" (54.9)
Dimension G A/C
1.92" (48.8)
Display Size
1" NPT

Details

Item
Liquid Tight Cord Connector
Material
Steel
Box Connection
1 in MNPT
Body Color - Cord Connector
Silver
Standards
CSA LR27378, UL E54218(M)
Gland Color Code
Yellow
Material - Cord Connector
Zinc Plated Steel
Material - External Strain Relief
No External Strain Relief
Insulated
No
Style - Connector
90 Degrees
Strain Relief Type
No External Strain Relief
Item - Cord Connector
Liquid Tight Cord Connector
Connector Type
90 Degrees
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Color
Yellow
Number of Cords
1
For Use With
Kellems Wire Management
Liquid Tight
Yes
Connection Orientation
90 Degrees
Environmental Rating
Hazardous Locations
IP Rating
IP66
For Maximum Cable OD
0.75 in
Body Material
Steel
Grommet Color Code
Yellow
Collar Material
Steel
Body Color
Silver
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Minimum Operating Temperature
-30 Degrees F
Maximum Operating Temperature
225 Degrees F
For Minimum Cable OD
0.63 in
Thread Type
NPT
Thread Gender
Male
Compatible Conduit Type
Liquid Tight Cord Connector
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Cord Connector Body Style
90 Degree Male
Product Type
Cord Connectors
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Color Code
Yellow
Material/Style
Zinc Plated Steel
Application
90 Degree Male- Form 4
Material - Mounting Hardware
Locknut or Tapped Opening
Number Of Conductors
Single
Industry Standard(s)
UL Listed
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Standard Duty
Item Type
Cord Connectors
Type
90° Male
Conductor Range
0.63- 0.75 in (15.9- 19.0 mm)
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.63 in to 0.75 in, Box Connection 1 in MNPT, Material - Cord Connector Zinc Plated Steel, External Strain Relief Material No External Strain Relief, Gland Color Code Yellow, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 2 3/16 in, Insulated No
