This item is Discontinued.

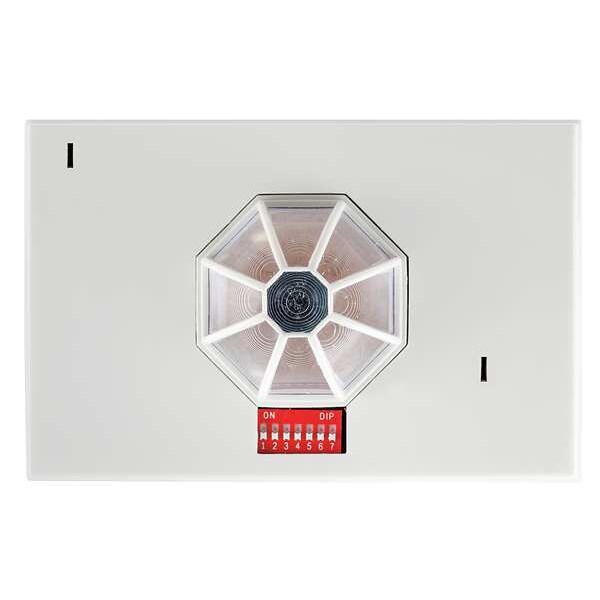

Hubbell Wiring Device-Kellems Daylight Sensor, Photocell, White DHTD

Daylight Sensor, Photocell, White (Discontinued)

  • Mfr # DHTD
  • Zoro # G5399861
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DHTD
Zoro #
G5399861
UPC #
783585159355
Country of Origin
United States

Dimensions

Coverage at Suggested Mounting Height
1,200 sq ft
Suggested Mounting Height - Motion Sensor
6 to 8 ft

Details

Use With - Motion Sensing and Dimming
0 to 10V DC Dimming Ballasts
Item - Motion Sensing and Dimming
Daylight Sensor
Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Photocell
Installation Location - Motion Sensor
Ceiling
Operating Voltage - Motion Sensing and Dimming
0 to 10 V DC
Color - Motion Sensing and Dimming
White
Time Delay Adjustment Method - Motion Sensor
Automatic, Manual
Time Delay - Motion Sensor
8 sec
Lighting Technology
Fluorescent, LED
Standards
UL and cUL Listed
Coverage
1200 sq. ft.
Max. Capacity @ 277VAC
0 to 10V, 100mA Current Sinking
Color
White
Coverage Angle - Motion Sensor
360 Degrees
For Use With
0 to 10VDC Dimming Ballasts
Viewing Angle
360 Degrees
Time Delay
Manual/Automatic
Installation Type
Ceiling
Max. Capacity @ 120VAC
0 to 10V, 100mA Current Sinking
Voltage
0 to 10VDC
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Sensor Type
Photocell
Item
Daylight Sensor
Description/Special Features
Continuous 0 to 10VDC Dimming Daylight Control for Up to (50) Ballasts
Wall Plate
Not Included
Style
Photocell
Voltage Rating Description
0-10V DC
Series
Indoor

Description

Daylight Sensor, Sensing Technology Photocell, Color White, Lighting Technology Fluorescent, LED, Standards UL and cUL Listed
