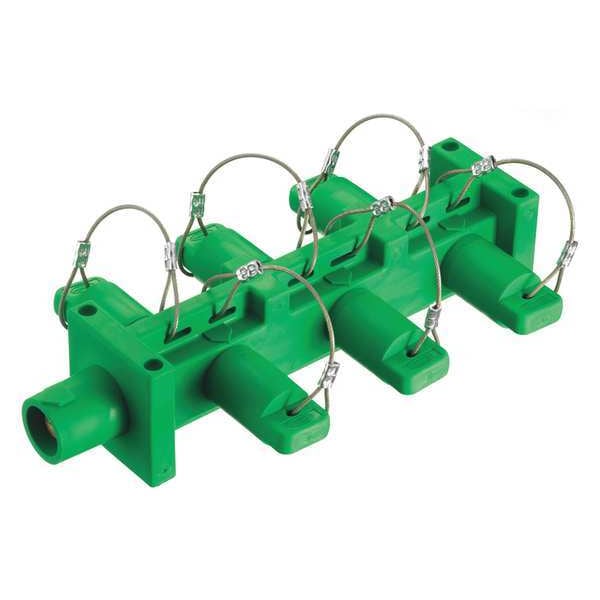

Hubbell Wiring Device-Kellems Distribution Block, 600VAC/250VDC, Grn HBL7DBGN - main

Distribution Block, 600VAC/250VDC, Grn

  • Mfr # HBL7DBGN

  • Zoro # G0110790

product price: $854.55
/ea
Free Shipping & Returns

Key Features

Type
Distribution Block
Series
16
Terminal Connection
Single Pin
Male/Female
Male-Female-Female-Female-Female-Female-Female
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7DBGN
Zoro #
G0110790
UPC #
783585112381
Country of Origin
China

Dimensions

Overall Width
7.54 in
Overall Height
3.24 in
Overall Length
13.26 in

Details

Item
Distribution Block
Type
Distribution Block
Series
16
Terminal Connection
Single Pin
Male/Female
Male-Female-Female-Female-Female-Female-Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Conductor Material
Brass
Amps AC/DC
300/400AC/DC
Color
Green
Material
Thermoplastic Elastomer
Standards
cUL, UL
Single Pole Device Style
Taper Nose
Fits
UL1691
Housing Color
Green
Number of Female Connections
6
Contact Material
Brass
Maximum Operating Temperature
75 Degrees C
Compatible with Series
16
NEMA Enclosure Rating
12, 3R, 4X
Housing Material
Thermoplastic Elastomer
Minimum Operating Temperature
-40 Degrees C
Number of Male Connections
1
Insulation
Insulated Body
Number Of Pins
1) In, 6) Out- Male 6) Female
Item Type
Distribution Block
Application
High Ampacity
Wattage
360000
Style
1-Male, 6-Female
Industry Standard(s)
UL 498 And UL1691
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of the device
Current / Amperage Rating
400 A
Voltage Rating Description
600V AC/DC
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Amperage Rating
400 A

Description

Distribution Block, Contact Material Brass, Current Rating 400 A, Housing Color Green, Housing Material Thermoplastic Elastomer, NEMA Enclosure Rating 12, 3R, 4X, Number of Female Connections 6, Number of Male Connections 1, Voltage Rating 600V AC, 600V DC, Compatible with Series 16, Maximum Operating Temperature 75 Degrees C, Minimum Operating Temperature -40 Degrees C, Overall Height 3.24 in, Overall Length 13.26 in, Overall Width 7.54 in
