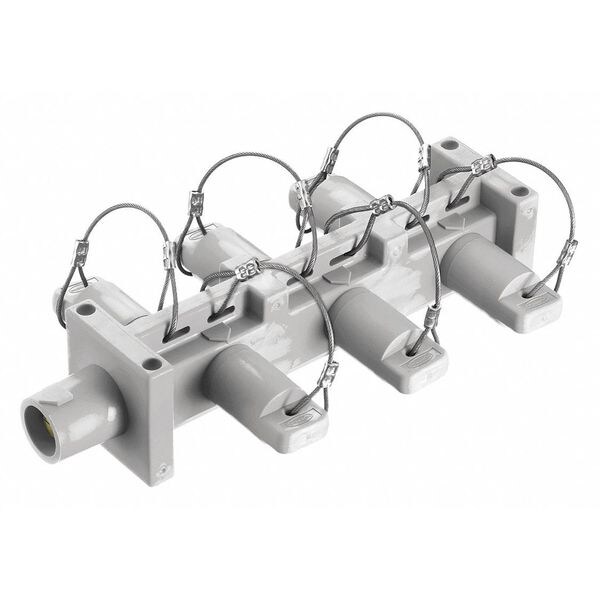

Distribution Block, 600VAC/250VDC, Taper
Mfr # HBL7DBW
Zoro # G0110815
product price:Â
$
854.55
/ea
Free Shipping & Returns
Key Features
Series
16
Terminal Connection
Single Pin
Male/Female
Male-Female-Female-Female-Female-Female-Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- HBL7DBW
- Zoro #
- G0110815
- UPC #
- 783585112398
- Country of Origin
- China
- Item
- Distribution Block
- Series
- 16
- Terminal Connection
- Single Pin
- Male/Female
- Male-Female-Female-Female-Female-Female-Female
- Current Rating
- 400 A
- Voltage Rating
- 600V AC, 600V DC
- NEMA Rating
- 12, 3R, 4X
- Amps AC/DC
- 300/400AC/DC
- Fits
- UL1691
- Standards
- cUL, UL
- Conductor Material
- Brass
- Material
- Thermoplastic Elastomer
- Color
- White
- Single Pole Device Style
- Taper Nose
- Housing Color
- White
- Number of Female Connections
- 6
- Maximum Operating Temperature
- 167 Degrees F
- Housing Material
- Thermoplastic Elastomer
- Contact Material
- Brass
- Compatible with Series
- 16
- Number of Male Connections
- 1
- Minimum Operating Temperature
- -40 Degrees F
- NEMA Enclosure Rating
- 12, 3R, 4X
Description
Distribution Block, Contact Material Brass, Current Rating 400 A, Housing Color White, Housing Material Thermoplastic Elastomer, NEMA Enclosure Rating 12, 3R, 4X, Number of Female Connections 6, Number of Male Connections 1, Voltage Rating 600V AC, 600V DC, Compatible with Series 16, Maximum Operating Temperature 167 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Height 3.24 in, Overall Length 13.26 in, Overall Width 7.54 in
