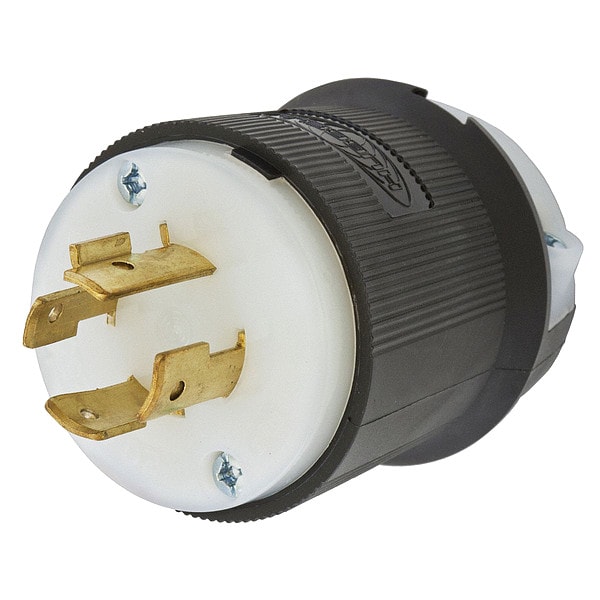

Locking Plug, L15-20P, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL2421

  • Zoro # G1956586


product price:  $40.10
/ea

Key Features

Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL2421
Zoro #
G1956586
UPC #
783585038193
Country of Origin
United States

Dimensions

Cord Size
0.350 in to 1.150 in
Maximum Wire Size
8 AWG
For Minimum Cable Diameter
0.35 in
Minimum Wire Size
16 AWG
Outside Diameter
2.33 in
For Maximum Cable Diameter
1.15 in
Body Length
2.33 in
Face Diameter
2.21 in
Wire Size
#16 AWG to #8 AWG
Length
2.33 in
Height
2.75 in
Dimensions
2.33 in x 2.33 in x 2.75 in
Width
2.33 in

Details

Item
Locking Plug
NEMA Plug Configuration
L15-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Boot Code
C
Material
Nylon
IP Rating
IP20
Application
Extra Heavy Duty Industrial
Polarized
Yes
For Location
Indoor
Market
Industrial
Maximum Operating Temperature
75 Degrees C
Horsepower Rating
3 hp
Blade Material
Brass
Minimum Operating Temperature
-40 Degrees C
Housing Material
Nylon
For Environment
Dry
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.350"-1.150" (9-29)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 496
Cord Type
All Listed Portables
Amperage Rating
20 A
Amps
20
Antimicrobial
No

Description

The HUBBELL 20A Twist-Lock Plug (L15-20P) is a locking plug rated for use in industrial applications where a secure electrical connection is required. This three-pole, four-wire device is rated for 250V AC and supports up to 20 amps of current. It features a cord grip designed to reduce strain on terminations, along with a clear, funnel-shaped wire entry.


Key Features of the HUBBELL 20A Twist-Lock Plug L15-20P:

  • Amperage/Voltage: Rated for 20 A at 250V AC

  • NEMA Configuration: L15-20P; three poles, four wires

  • Cord Range: Accepts cable diameters from 0.350 in to 1.150 in (#16 AWG to #8 AWG stranded copper wire)

  • Material Properties: nylon housing; brass blades; chemical and impact resistant

  • Wire Connection Type: Screw terminals with standard wiring style

  • Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use

  • Standards Compliance: Certified to CSA C22.2 No.42, UL 498, Federal Specification W-C-596

  • Ingress Protection/Flammability Rating: IP20 suitability; HB or better per UL94 flammability rating
