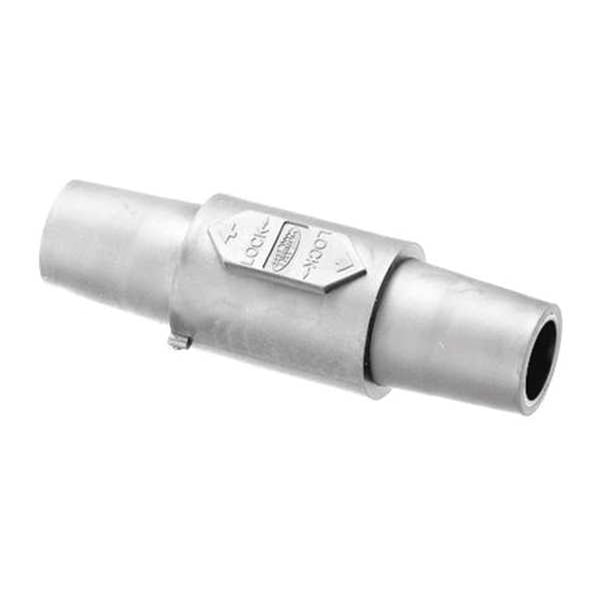

Hubbell Wiring Device-Kellems Double Connector, Wht, 300/400AC/DC HBLDFW - main

Double Connector, Wht, 300/400AC/DC

  • Mfr # HBLDFW

  • Zoro # G7074776

product price: $65.45
/ea

Key Features

Type
Gender Reversing
Series
16
Male/Female
Female-Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLDFW
Zoro #
G7074776
UPC #
783585002798
Country of Origin
China

Dimensions

Overall Height
4.84 in
Overall Width
1.56 in

Details

Item
Double Connector
Type
Gender Reversing
Series
16
Male/Female
Female-Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Color
White
Fits
UL1691
Material
Thermoplastic Elastomer
Amps AC/DC
300/400AC/DC
Single Pole Device Style
Taper Nose
Conductor Material
Brass
Standards
cUL, UL
Minimum Operating Temperature
-40 Degrees C
NEMA Enclosure Rating
12, 3R, 4X
Gender Configuration
Female-Female
Contact Material
Brass
Compatible with Series
16
Maximum Operating Temperature
75 Degrees C
Housing Material
Thermoplastic Elastomer
Housing Color
White
Voltage Rating Description
600V AC/DC
Amperage Rating
400 A
Application
High Ampacity
Current / Amperage Rating
400 A
Item Type
Gender Reverser
Wattage
360000
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of the device
Industry Standard(s)
UL 498 And UL1691
Number Of Pins
1) In, 1) Out
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Style
Double Female
Insulation
Insulated Body

Description

Double Connector, Contact Material Brass, Current Rating 400 A, Gender Configuration Female-Female, Housing Color White, Housing Material Thermoplastic Elastomer, NEMA Enclosure Rating 12, 3R, 4X, Voltage Rating 600V AC, 600V DC, Compatible with Series 16, Maximum Operating Temperature 75 Degrees C, Minimum Operating Temperature -40 Degrees C, Overall Height 4.84 in, Overall Width 1.56 in
