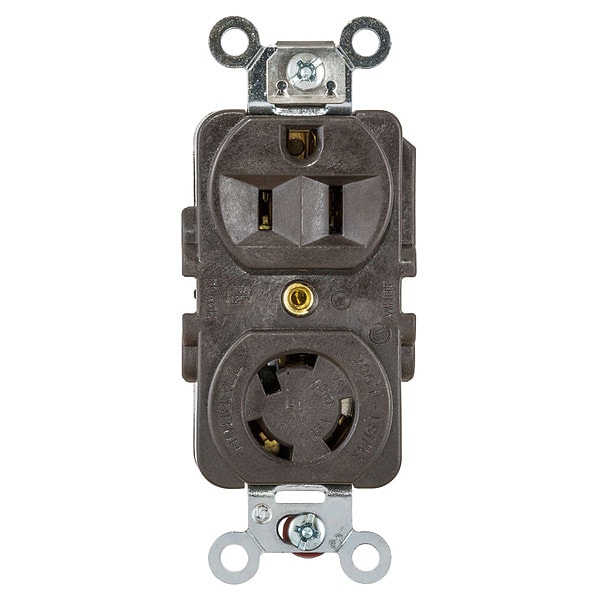

Hubbell Wiring Device-Kellems Duplex Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Brown HBL4792 - main

Duplex Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Brown

  • Mfr # HBL4792

  • Zoro # G0939425

product price:  $47.59
/ea

Key Features

NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL4792
Zoro #
G0939425
UPC #
783585236995
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Wire Size
#14-#10 AWG copper stranded or solid conductor only

Details

Item
Duplex Locking Receptacle
NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA Certified C22.2 No. 42 File 285, UL 498 File E2186
Shrouded / Non-Shrouded
Non-Shrouded
Material
Valox
IP Rating
IP20
Grade
Industrial
Mounting Type
Flush Mount
Wiring Style
Standard
Special Features
With Cover
For Environment
Dry
For Location
Indoor
Minimum Operating Temperature
-40 Degrees C
Housing Material
Valox
Maximum Operating Temperature
75 Degrees C
Horsepower Rating
1/2 hp
Flammability
UL 94 V-2 or better
Terminal Designations
Terminals identified in accordance with UL 498 and CSA
Base Material
RTP
Lock Type
Combination-face-duplex-receptacles
Shrouded
No
NEMA Enclosure Rating
12, 4X
Amps
15
NEMA Configuration
5-15, L5-15
HP
0.5
Voltage
125V AC
NEMA Rating
12, 4X
Color
Brown

Description

Combination Device, Current Rating 15 A, Housing Color Brown, Illuminated No, Mount Type Flush, NEMA Receptacle Configuration 5-15R, L5-15R, Number of Poles 2, Number of Wires 3, Pilot Light No, Switch Style Not Applicable, Switch Type Not Applicable, Voltage Rating 125V AC, Wiring Method Back/Side, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Material Valox, Standards CSA Certified C22.2 No. 42 File 285, UL 498 File E2186, Wire Connection Type Screw Terminals
