Shop HUBBELL WIRING DEVICE-KELLEMS

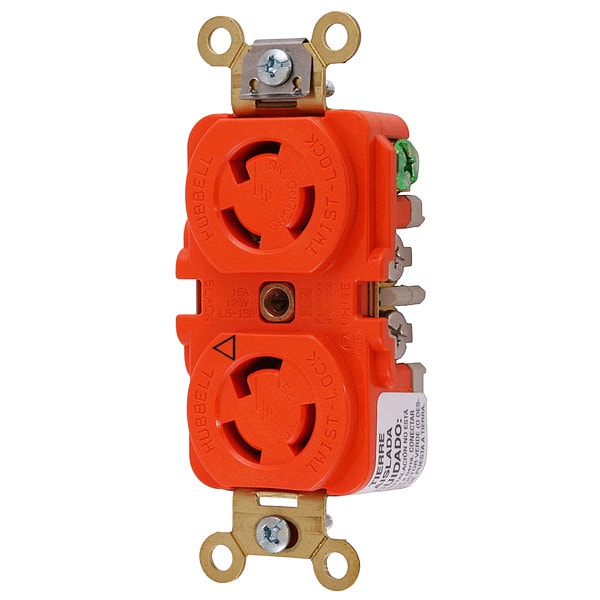

Duplex Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Orange

  • Mfr # IG4700A

  • Zoro # G1191547

product price:  $46.15
/ea

Key Features

NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IG4700A
Zoro #
G1191547
UPC #
783585002392
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Wire Size
#12 AWG
Width
1.70 in
Dimensions
3.29 in x 1.70 in x 1.17 in
Length
3.29 in
Height
1.17 in

Details

Item
Duplex Locking Receptacle
NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Special Features
With Isolated Ground
Material
Thermoplastic
IP Rating
IP20
Mounting Type
Flush Mount
Wiring Style
Standard
Grade
Industrial
Connection Orientation
Straight
Polarized
Yes
AFCI
No
Market
Industrial
Housing Material
Thermoplastic
For Environment
Dry
Horsepower Rating
1/2 hp
Minimum Operating Temperature
-40 Degrees F
Shrouded
No
Includes
Mounting Strap
Includes Mounting Hardware
Yes
Number of Gangs
1
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
NEMA Enclosure Rating
12, 4X
For Location
Indoor
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Base Material
RTP
Spring Material
.031" Brass
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Lock Type
Twist-lock
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Heavy Duty Industrial
Amperage Rating
15 A
Amps
15
UL 94 Flammability Rating
HB

Description

In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than ever—Hubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
• Reinforced thermoplastic construction
• Single piece, all brass contacts
• Single point break-off tabs
• Mounting strap tabs lock the body and base together
