  6. Duplex Locking Receptacle, Non-NEMA, 10/15 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Black

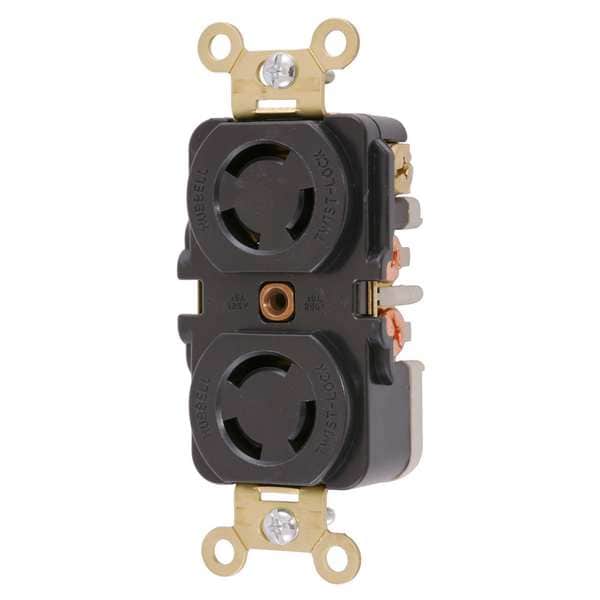

Hubbell Wiring Device-Kellems Duplex Locking Receptacle, Non-NEMA, 10/15 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Black HBL7580 - main

Duplex Locking Receptacle, Non-NEMA, 10/15 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Black

  • Mfr # HBL7580

  • Zoro # G2082911

product price:  $47.05
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
10/15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL7580
Zoro #
G2082911
UPC #
783585002354
Country of Origin
United States

Dimensions

Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Wire Size
#18 AWG -#10 AWG solid or stranded copper wire only.
Length
3.29 in
Height
1.17 in
Dimensions
3.29 in x 1.7 in x 1.17 in
Width
1.7 in

Details

Item
Duplex Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
10/15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Moisture Resistant
Flange Type
Non-Flanged
Mounting Type
Flush Mount
Material
Nylon
Wiring Style
Standard
Grade
Industrial
Special Features
With Cover
Number of Gangs
1
For Environment
Dry
Connection Orientation
Straight
Market
Industrial
Includes
Mounting Strap
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
AFCI
No
Housing Material
Thermoplastic
For Location
Indoor
Polarized
Yes
Lock Type
Replacement-use
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Spring Material
.031" Brass
Base Material
Black Polyester
Application
Heavy Duty Industrial
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG -#10 AWG solid or stranded copper wire only. Mechanical - Terminal Accommodation - #18-#10 AWG solid or stranded copper wire. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
10/15 A
OEM Brand Name
Hubbell Wiring Device-Kellems
NEMA Rating
12, 4X
Amps
15/10

Description

The HUBBELL 15/10A Duplex Twist-Lock Receptacle is a locking receptacle rated for use in indoor, dry locations. This duplex unit features a reinforced thermoplastic housing and single piece brass contacts, supporting both 10A and 15A at 125/250V AC with a three-pole, three-wire configuration. The device includes break-off tabs for multiple installation options and mounting strap tabs that secures the body and base together.


Key Features of the HUBBELL 15/10A Duplex Twist-Lock Receptacle:

  • Amperage & Voltage: Rated for 10/15 A at 125/250V AC

  • Construction: Reinforced thermoplastic (nylon) housing with all-brass contacts

  • Mounting Type: Flush mount design; includes mounting strap and screw hardware

  • Wire Accommodation: Accepts #18 AWG to #10 AWG solid or stranded copper wire via screw terminals

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Dielectric Strength: Withstands minimum of 2,000V

  • Flammability Rating: V-2 or better per UL94/CSA standards

  • NEMA Enclosure Ratings: Suitable for use in NEMA Type 12 and 4X enclosures when properly installed

  • Moisture Resistance & IP Rating: Moisture resistant; rated IP20 for indoor use unless additional protection is provided

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL Listed to UL498
