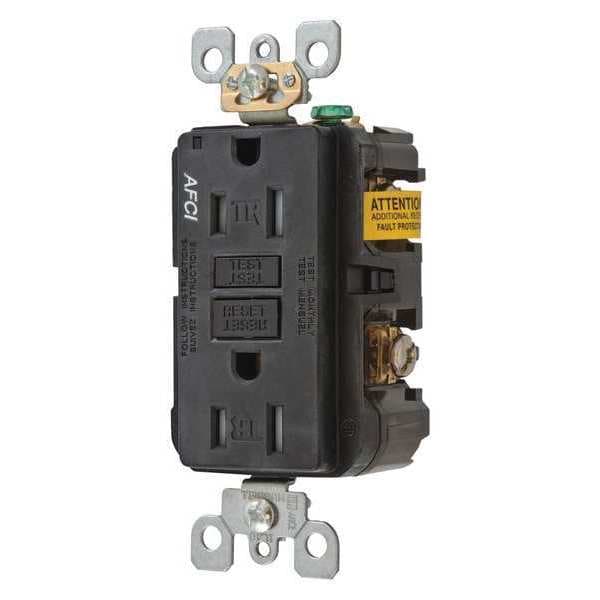

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # AFR15TRBK

  • Zoro # G4571835


product price:  $61.97
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AFR15TRBK
Zoro #
G4571835
UPC #
783585426143
Country of Origin
China

Dimensions

Face Plate Height
2.6 in
Face Plate Width
1.7 in
Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.8 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, CSA Certified Tech Letter No. M-02A, NEMA WD-6, UL 498, UL Federal Specification WC-596, UL1699A E366570
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Special Features
Standard
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-15
HP
1/2 hp
Application Environment
Commercial
Weather Resistant
No
Corrosion Resistant
No
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
No
NEMA Rating
1
Surge Suppression
No
Sub-Category
Duplex Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Mounting Type
Flush
Power Indicator
No
Outlet Type
Duplex
Outlet Type - Plugs and Receptacles
Standard Duplex
Tamper Resistant
Yes
Number of Gangs
1
Material
Nylon
Self Testing
Yes
Housing Material
Nylon
AFCI
Yes
Surge Protection
No
NEMA Enclosure Rating
1
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Market
Commercial
Cover Type
No Cover
Shrouded
No
Polarized
Yes
Minimum Operating Temperature
-30 Degrees F
Horsepower Rating
1/2 hp
GFCI
No
Maximum Operating Temperature
150 Degrees F
Grade
General Use

Description

The HUBBELL 15A, 125V AC Flush Mount Duplex Receptacle is a commercial-grade electrical outlet suitable for use in standard power distribution applications. This duplex receptacle includes arc fault circuit interrupter (AFCI) technology that interrupts the circuit when an arc is detected. The unit is tamper resistant; mounts flush to the wall.


Key Features of the HUBBELL 15A, 125V AC Flush Mount Duplex Receptacle:

  • AFCI: Integrated Arc Fault Circuit Interrupter interrupts current flow if certain types of arcing conditions are detected.

  • Amperage/Voltage: Rated for 15 amps and 125V AC operation.

  • NEMA Configuration: Standard duplex outlet with NEMA 5-15R configuration.

  • Mounting Type: Flush mount design suitable for single-gang installations.

  • Tamper Resistant: Includes internal shutters designed to block insertion of most foreign objects into the slots.

  • Wiring Method: Supports both back and side wire connections using screw terminals; accommodates three wires (2-pole).

  • Material: Constructed from nylon housing material rated for temperatures between -30°F to 150°F.

  • Standards Compliance: Certified to CSA C22.2 No.42, UL498, UL Federal Specification WC-596, NEMA WD-6, and UL1699A E366570 standards.
