  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Recessed Mount, Grounded
No Product Image Available

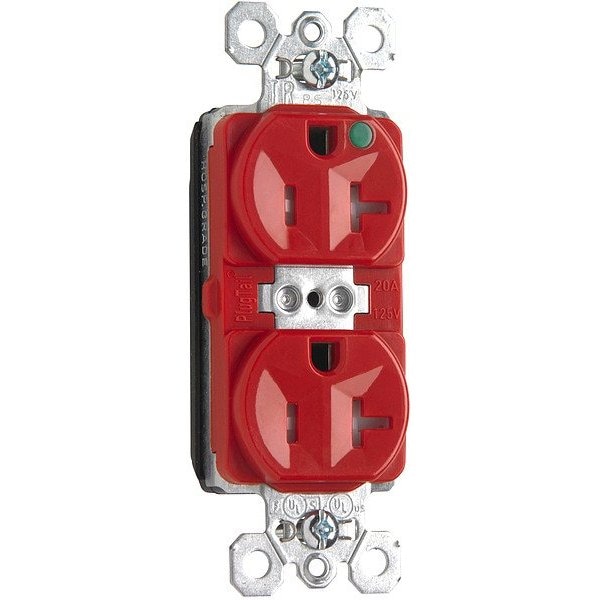

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Recessed Mount, Grounded

  • Mfr # PTTR8300RED

  • Zoro # G715677587

product price:  $21.55
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PTTR8300RED
Zoro #
G715677587
UPC #
785007013542
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
0.6 in
Face Plate Width
1.5 in
Face Plate Height
2.8 in
Maximum Wire Size
12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Modular Wiring
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
Fed Spec, UL 498, cULus Listed
Resistance Properties
Corrosion Resistant, Tamper Resistant
Flange Type
Non-Flanged
Contact Material
Brass
Housing Material
Polycarbonate
Minimum Operating Temperature
-40 Degrees F
Grade
Hospital Grade
For Location
Indoor
Maximum Operating Temperature
140 Degrees F
Market
Commercial
Housing Material Finish
Matte
UL 94 Flammability Rating
V-2
For Environment
Corrosive
Features
Auto-Ground Clip Assures Positive Ground, Dual Mechanical Shutter System to Help Prevent Insertion of Foreign Objects
Polarized
Yes
Cover Type
No Cover
Flange Shape
Oval
Connection Orientation
Straight
Surge Protection
No
AFCI
No
GFCI
No
Hub Type
Feed Through
NEMA Enclosure Rating
1, 6
Shrouded
No

Description

Receptacle
