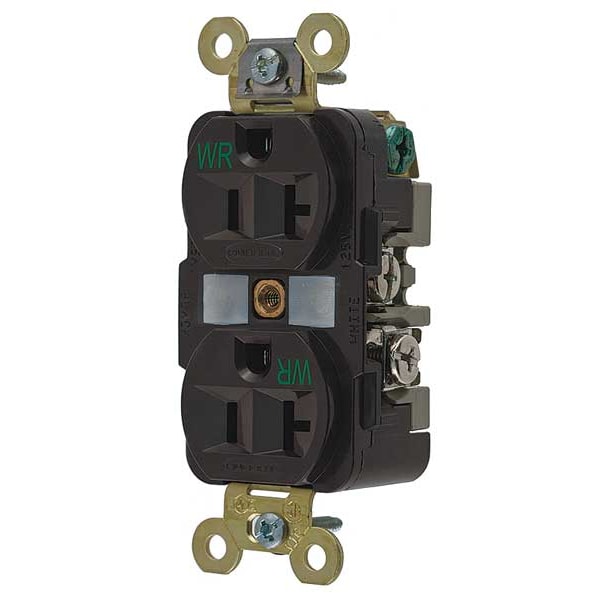

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Mfr # HBL5362WR
Zoro # G1547156

33.89

Key Features

Receptacle Type

Duplex

NEMA Receptacle Configuration

5-20R

Current Rating

20 A

Voltage Rating

125V AC

Phase

Single

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: HBL5362WR
Zoro #: G1547156
UPC #: 783585320557
Country of Origin: United States

Dimensions

Display Size: Standard Sized Product
Height: 1.19 in
Width: 1.65 in
Dimensions: 3.28 in x 1.65 in x 1.19 in
Length: 3.28 in
Wire Size: #12 AWG to #10 AWG
Mount Hole Center-to-Center Height: 3.3 in
Face Plate Width: 1.7 in
Minimum Wire Size: 12 AWG
Maximum Wire Size: 10 AWG
Face Plate Height: 2.7 in
Overall Depth: 1.2 in

Details

Item: Duplex Straight Blade Receptacle
Receptacle Type: Duplex
NEMA Receptacle Configuration: 5-20R
Current Rating: 20 A
Voltage Rating: 125V AC
Phase: Single
Number of Poles: 2
Number of Wires: 3
Wire Connection Type: Screw Terminals
Wiring Method: Back, Side
Grounding: Grounded
Housing Color: Brown
Mount Type: Flush
Standards: CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties: Weather Resistant
Flange Type: Non-Flanged
Number of Gangs: 1
Outlet Type: Duplex
Voltage: 125VAC
Application Environment: Harsh and Heavy Use Industrial
HP: 1 hp
Outlet Type - Plugs and Receptacles: Standard Duplex
Color: Brown
Corrosion Resistant: No
Tamper Resistant: No
NEMA Configuration: 5-20
Mounting Type - Plugs and Receptacles: Flush
Weather Resistant: Yes
Surge Suppression: No
NEMA Receptacle Configuration - Plugs and Receptacles: 5-20R
Mounting Type: Flush
Wiring Method - Plugs and Receptacles: Back and Side
Sub-Category: Duplex Receptacles
Weather Resistant - Plugs and Receptacles: Yes
Material: Nylon/Reinforced PET
Type: Weather Resistant
Series: Extra Heavy Duty
Weight: 0.25 lb
Number Of Wires: 3-Wire
Amperage: 20 A
Mounting Hardware Material: Screw Mounting
Carton Quantity: 10
Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Wattage: 2500 W
Environmental Rating: Weather Resistant
Maximum Horsepower: 1
Style: Finder Groove Face
Dielectric Strength: Withstands 2,000V minimum
UPC: 783585000000
Nema Rating: 5-20R
Brand: Hubbell Wiring Device-Kellems
Application: Extra Heavy Duty Specification Grade
Connectivity: Back and Side Wired Screw Terminals
Market: Industrial
Cover Type: No Cover
Connection Orientation: Straight
Minimum Operating Temperature: -40 Degrees F
UL 94 Flammability Rating: V-0, V-2
Grade: Federal Specification
Surge Protection: No
GFCI: No
Shrouded: No
NEMA Enclosure Rating: 1
Housing Material: Nylon, Reinforced PET
Horsepower Rating: 1 hp
Includes Mounting Hardware: Yes
Maximum Operating Temperature: 167 Degrees F
Includes: Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Polarized: Yes
Contact Material: Nickel-Plated Brass
AFCI: No
Dielectric Voltage: Withstands 2,000V minimum
Ground Screw Material: #10-32 Silicon Bronze (Green)
Terminal Screw Material: #10-32 Silicon Bronze (Ni plate if neutral)
Terminal Accommodation: #12-#10 AWG stranded or solid copper wire only
Top Material: Nylon
Device Color: Brown
Mounting Screw Material: Steel-Zinc Plated
Operating Temperatures: Maximum continuous 75°C; minimum -40°C (w/o impact)
Receptacle Style: Duplex
Other Available Colors: Brown, Black, Gray, Ivory, Red, White
Flammability: UL 94 V2 or better, Top: UL 94V-2, Base: UL 94V-0
Temperature Rise: Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Base Material: Reinforced PET
Face Shape: Traditional
Face Style: Finder Groove
Mounting Strap Material: .050" (1.3) Brass
Horsepower: 1
Certification: -UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Auto Ground Clip Material: Stainless Steel
Current Interrupting: Certified for current interrupting at full rated current
Receptacle Grade: Extra Heavy Duty, Weather Resistant
Terminal Identification: Terminals identified in accordance with UL 498 and CSA
Power Contacts Material: .037" (.9) Brass
Standard: NEMA
Poles and Wires: 2 Pole, 3-Wire Grounding
Rating: 15A, 125V
Industry Standard(s): Certified to CSA 22.2, No. 42 File 285 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Horsepower - Maximum: 1
OEM Brand Name: Hubbell Wiring Device-Kellems
Material - Mounting Hardware: Screw Mounting
Environmental Conditions: Weather Resistant
Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R BN is a traditional duplex outlet designed for use in industrial settings. It features a rated as weather resistant construction and is rated for 20 amps at 125 volts AC. The receptacle supports both back and side wiring methods with screw terminals, accommodating #12 to #10 AWG stranded or solid copper wire. Its grounded design includes an integral brass ground strap and stainless steel auto ground clip for proper installation.

Key Features of the HUBBELL 20A Duplex Receptacle:

Amperage/Voltage: Rated for 20 A, 125 VAC

NEMA Configuration: 5-20R, duplex style

Wiring Method: Back and side wired screw terminals; accepts #12–#10 AWG copper wire

Rated as Weather Resistant: Suitable for harsh and heavy use industrial environments

Material Construction: Nylon/reinforced PET housing with nickel-plated brass contacts

Mounting Type: Flush mount; includes grounding clip and mounting hardware

Dielectric Strength: Withstands minimum of 2,000V

Operating Temperature Range: -40°C to +75°C (without impact)

Circuit ID Face & Finder Groove Face Style for identification and handling

Certifications/Standards: UL Listed (UL498), CSA Certified C22.2 No.42, Federal Specification WC596, NEMA WD-6 compliant
