Shop HUBBELL WIRING DEVICE-KELLEMS

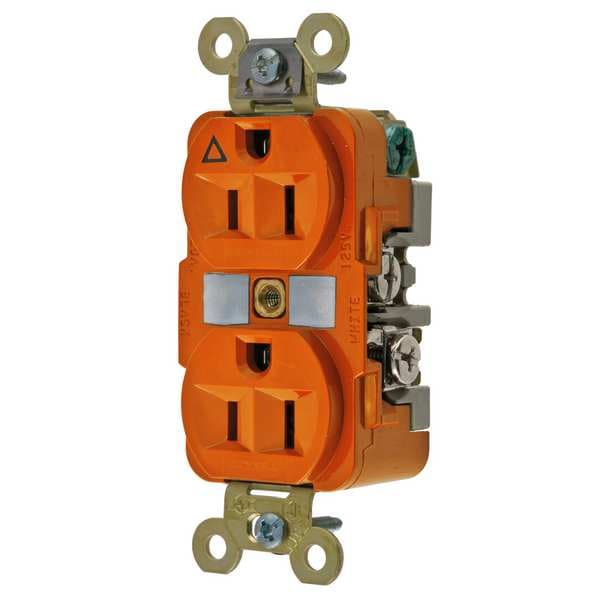

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

  • Mfr # IG5262

  • Zoro # G0581332

product price:
$
33.14
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IG5262
Zoro #
G0581332
UPC #
783585756530
Country of Origin
United States

Dimensions

Face Plate Width
1.7 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Height
1.05 in
Width
1.33 in
Length
3.28 in
Dimensions
3.28 in x 1.33 in x 1.05 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI, CSA C22.2, RoHS Compliant, UL 498, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Material
Nylon
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
NEMA Configuration
5-15
Sub-Category
Duplex Receptacles
Surge Suppression
No
Voltage
125VAC
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant
No
Application Environment
Industrial
Corrosion Resistant
No
Power Indicator
No
Weather Resistant - Plugs and Receptacles
No
Outlet Type
Duplex
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Number of Gangs
1
Tamper Resistant
No
Mounting Type
Flush
HP
1/2 hp
Special Features
Isolated Ground
Type
Duplex
Housing Material
Nylon
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Market
Industrial
AFCI
No
Includes Mounting Hardware
Yes
Grade
Federal Specification
Minimum Operating Temperature
-40 Degrees F
Shrouded
No
NEMA Enclosure Rating
1
For Location
Indoor
UL 94 Flammability Rating
V-0, V-2
GFCI
No
Polarized
Yes
Connection Orientation
Straight
Cover Type
No Cover
Maximum Operating Temperature
167 Degrees F
Surge Protection
No
Contact Material
Nickel-Plated Brass
Horsepower Rating
1/2 hp
Enhancement
Isolated Ground
Current Interrupting
Certified for current interrupting at full rated current
Horsepower
0.5
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Receptacle Style
Duplex
Receptacle Grade
Heavy Duty Spec Grade
Mounting Screw Material
Steel-Zinc Plated
Device Color
Orange
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Auto Ground Clip Material
Stainless Steel
Rating
15A, 125V
Poles and Wires
2 Pole, 3-Wire Grounding
Standard
NEMA
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Flammability
Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better.
Face Style
Finder Groove
Other Available Colors
Orange, Gray, Ivory, Red
Dielectric Voltage
Withstands 2,000V minimum
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Base Material
Reinforced PET
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Top Material
Nylon
Power Contacts Material
.037" (.9) Phosphor Bronze
Face Shape
Traditional
Mounting Strap Material
.050" (1.3) Brass
Style
Finder Groove Face
Dielectric Strength
Withstands 2,000V minimum
Series
Heavy Duty
Nema Rating
5-15R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
1875 W
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Extra Heavy Duty Specification Grade
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
0.5

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R OR is an isolated ground duplex receptacle rated for use in specified electrical applications. This device features insulation barrier construction to isolate the ground contacts from the mounting strap, with a dedicated green grounding screw for connection to a separate insulated ground wire. It is rated for 15 amps and 125 volts AC, suitable for specification grade installations requiring isolated grounding.


Key Features of the HUBBELL 15A Duplex Receptacle:

  • Isolated Ground: Insulation barrier separates ground contacts from mounting strap; green grounding screw allows dedicated insulated ground connection.

  • Electrical Ratings: Rated at 15A, 125V AC; rated for current interrupting up to 15A, 125V AC.

  • NEMA Configuration: Standard NEMA 5-15R duplex outlet with polarized design (2 pole, 3-wire grounding).

  • Wiring Options: Back and side wired screw terminals accommodate #14–#10 AWG copper stranded or solid conductors.

  • Material Construction: Nylon housing and face; reinforced PET base; nickel-plated brass contacts; phosphor bronze power contacts.

  • Mounting Type: Flush mount installation with included stainless steel auto-ground clip and mounting hardware.

  • Operating Temperatures: Maximum continuous temperature of 75°C (167°F), minimum -40°C without impact.

  • Certifications & Standards: UL Listed to UL498 File E2186, CSA Certified C22.2 No.42 File 285, Federal Specification WC596G, NEMA WD-6 compliant.
