  11. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

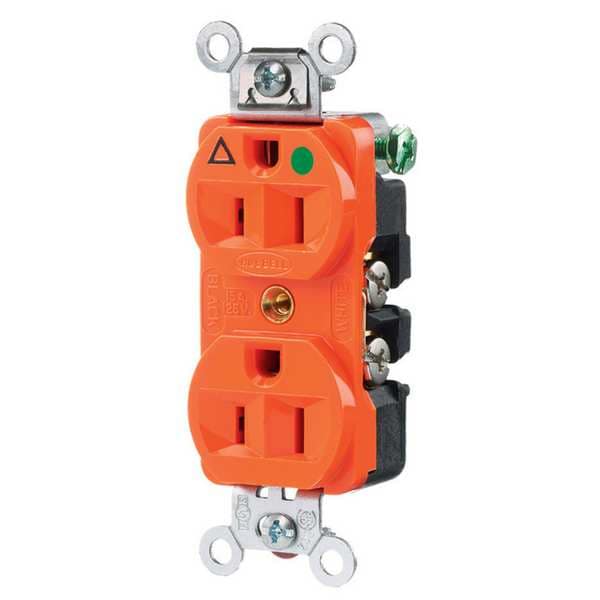

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount IG8200 - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

  • Mfr # IG8200

  • Zoro # G3325515

product price: $43.15
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG8200
Zoro #
G3325515
UPC #
783585842509
Country of Origin
United States

Dimensions

Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.33 in x 1.05 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.4 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Width
1.33 in
Height
1.05 in
Length
3.28 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
IP Rating
IP20
Standards
C22.2 No. 42 File 285, CSA Certified, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Special Features
Isolated Ground
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Heavy Use Hospital Grade
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type - Plugs and Receptacles
Flush
Corrosion Resistant
No
NEMA Configuration
5-15
Material
Nylon
Weather Resistant - Plugs and Receptacles
No
Power Indicator
No
Outlet Type
Duplex
Number of Gangs
1
Tamper Resistant
No
Weather Resistant
No
Surge Suppression
No
Color
Orange
Outlet Type - Plugs and Receptacles
Standard Duplex
Voltage
125VAC
Mounting Type
Flush
HP
1/2 hp
Sub-Category
Duplex Receptacles
Style
Finder Groove Face
Dielectric Strength
Withstands 2,000V minimum
Connectivity
Back and Side Wired Screw Terminals
Number Of Wires
3-Wire
Amperage
15 A
Series
Extra Heavy Duty Hospital Grade
Type
Duplex Receptacle
Carton Quantity
10
Brand
Hubbell Wiring Device-Kellems
Application
Extra Heavy Duty Hospital Grade
Nema Rating
5-15R
Maximum Horsepower
0.5
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Housing Material
Thermoplastic
UL 94 Flammability Rating
V-2
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
Polarized
Yes
Grade
Hospital Grade Fed. Spec.
AFCI
No
Horsepower Rating
1/2 hp
Shrouded
No
NEMA Enclosure Rating
1
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
For Location
Indoor
Contact Material
Brass
Includes Mounting Hardware
Yes
Surge Protection
No
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Device Grade
Isolated Ground
Poles and Wires
2 Pole, 3 Wire
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Flammability
UL 94V-2
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Color
Orange
Current Interrupting
Certified for current interrupting at full rated current
Horsepower - Maximum
0.5
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Wattage
1875 W
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R OR is a traditional duplex isolated ground receptacle suitable for use in applications requiring extra heavy duty and hospital grade receptacles. It features an orange thermoplastic housing and is intended for indoor installations where an isolated ground is specified. The device supports both back and side wiring with screw terminals, accommodating #14 to #10 AWG copper wire.


Key Features of the HUBBELL 15A Duplex Receptacle:

  • Isolated Ground: Features insulation barrier construction that separates ground contacts from the mounting strap; Triangle marking on face denotes isolated ground.

  • Electrical Ratings: Rated for 15 A, 125 V AC; NEMA configuration 5-15R; maximum horsepower rating of 1/2 hp.

  • Hospital Grade: Construction complies with Federal Specification W-C-596 and UL498 requirements.

  • Nylon body with finder groove face

  • Wiring Options: Back and side wired screw terminals accept stranded or solid copper wire (#14–#10 AWG).

  • Dielectric Strength & Flammability: Withstands minimum dielectric voltage of 2,000V; flammability rated UL94V-2.

  • Mounting Hardware Included: Comes with grounding staple, mounting hardware, wall plate or weatherproof cover as specified by application needs.

  • Certifications & Standards: CSA Certified C22.2 No.42 File 285; NEMA WD-6 compliant; UL Listed (File E2186).
