  6. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Isolated Ground

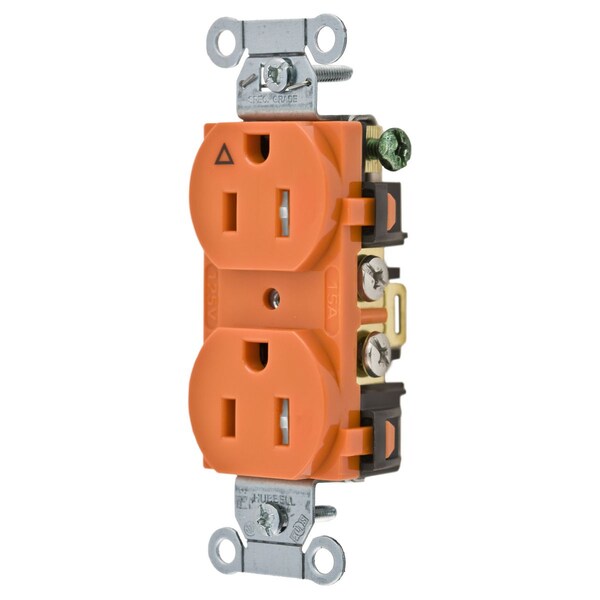

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Isolated Ground IG5252TR - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Isolated Ground

  • Mfr # IG5252TR

  • Zoro # G700701938

product price:  $19.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IG5252TR
Zoro #
G700701938
UPC #
783585540016
Country of Origin
China

Dimensions

Width
1.57 in
Height
1.07 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.57 in x 1.07 in
Length
3.28 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Orange
Standards
Certified to CSA 22.2, Fed. Spec. W-C-596, NEMA WD-6 Compliant, No. 42 File 285, UL Listed to UL 498 File No. E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Color
Orange
Type
Tamper-Resistant
Material
Nylon
Nema Rating
5-15R
Amperage
15 A
Maximum Horsepower
0.5
Style
Smooth Face
Carton Quantity
10
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Series
Hubbell-PRO
Connectivity
Back and Side Wired Screw Terminals
Number Of Wires
3-Wire
Brand
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Application
Hubbell-Pro Heavy Duty Specification Grade
Device Color
Orange
Automatic Self-grounding Clip
Stainless steel
Current Interrupting
Certified for current interrupting at full rated current
Mounting Strap
Galvanized steel
Dielectric Voltage
Withstands 2,000V minimum
Flammability
UL 94 V-2
Power Contact
.031" (.8) Brass
Base
Nylon
Terminal Screws
Brass
Mounting Screws
Stainless Steel
Face
Nylon
Clamp
Nickel plated steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Ground Contacts
.031" (.8) Brass
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Horsepower - Maximum
0.5
Wattage
1875 W
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Tamper ResistantDuplex Receptacle, Isolated Ground, Commercial Grade, 15A 125V, 2-Pole3-Wire Grounding, 5-15R, Back and Side Wired, Orange
