Shop HUBBELL WIRING DEVICE-KELLEMS

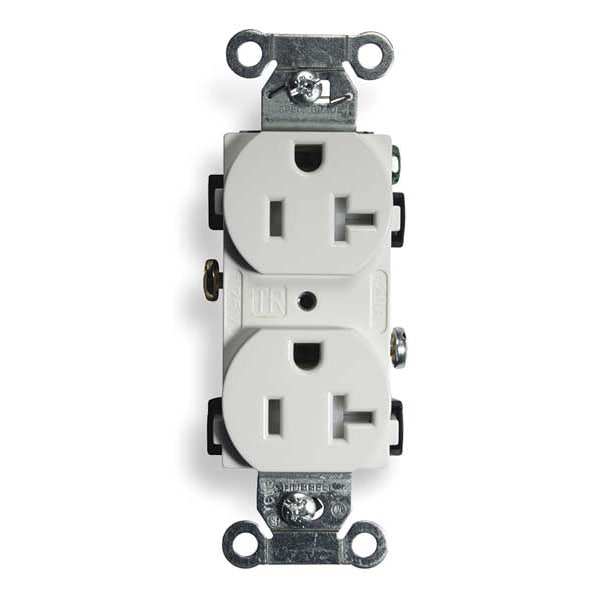

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR20WHITR

  • Zoro # G3426035

product price:
$
8.91
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BR20WHITR
Zoro #
G3426035
UPC #
783585144160
Country of Origin
China

Dimensions

Minimum Wire Size
12 AWG
Overall Depth
3.3 in
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified C22.2, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Surge Suppression
No
Wiring Method - Plugs and Receptacles
Back and Side
Voltage
125VAC
Power Indicator
No
Outlet Type
Duplex
HP
1 hp
Material
Nylon
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
Weather Resistant
No
Sub-Category
Duplex Receptacles
Application Environment
Commercial
Corrosion Resistant
No
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-20
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Tamper Resistant
Yes
Type
Duplex
Polarized
Yes
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Grade
Federal Specification
UL 94 Flammability Rating
V-2
AFCI
No
Contact Material
Brass
NEMA Enclosure Rating
1
Surge Protection
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Maximum Operating Temperature
167 Degrees F
Market
Commercial, Industrial
GFCI
No
For Location
Indoor
Shrouded
No
Cover Type
No Cover
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Device Color
White
Rating
20A, 125V
Horsepower
1
Top Material
Nylon
Mounting Screw Material
Steel-Zinc Plated
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Mounting Strap Material
.040" (1) Steel (Galvanized)
Current Interrupting
Certified for current interrupting at full rated current
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Auto Ground Clip Material
Stainless Steel
Poles and Wires
2 Pole, 3-Wire Grounding
Base Material
Nylon
Receptacle Style
Duplex
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Power Contacts Material
.030" (.8) Brass
Receptacle Grade
Specification Grade Commercial Series, Tamper Resistant
Standard
NEMA
Flammability
UL 94 V-2
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Face Shape
Traditional

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH is a tamper-resistant electrical outlet intended for indoor use. This duplex receptacle features a smooth nylon face and wrap-around galvanized steel straps for durability. It is rated for 20 amps at 125 volts AC and supports both back and side wiring methods with screw terminals, accommodating #12–#10 AWG copper conductors.


Key Features of the HUBBELL 20A Duplex Receptacle:

  • Tamper Resistant: Internal shutters are present to reduce the likelihood of foreign object insertion.

  • Electrical Rating: Rated for 20A, 125V AC; NEMA configuration 5-20R.

  • Material Construction: Nylon housing and face with brass power contacts; galvanized steel mounting strap.

  • Mounting Type: Flush mount design suitable for single-gang installations; includes grounding staple and mounting hardware.

  • Wiring Method: Supports both back and side wire connections using screw terminals (#12–#10 AWG copper only).

  • Certification & Standards: UL Listed to UL498, CSA Certified C22.2 No.42, meets Federal Specification WC596G, NEMA WD-6 compliant.

  • Operating Temperature Range: -40°F to +167°F (maximum continuous temperature rise of up to 75°C).
