Shop HUBBELL WIRING DEVICE-KELLEMS

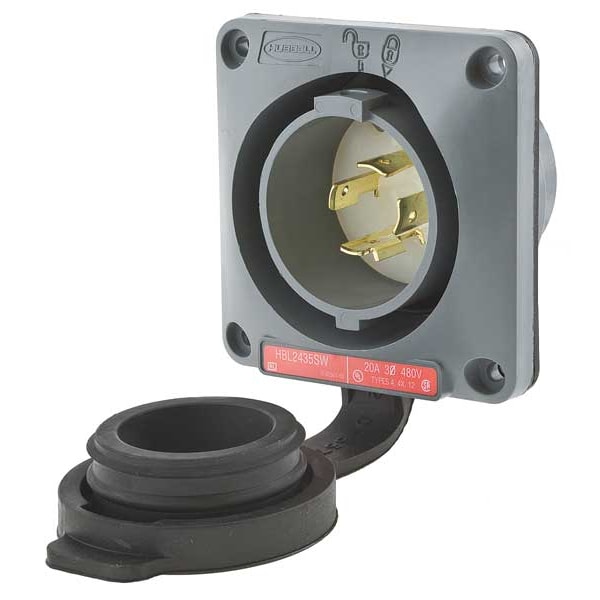

Watertight Flanged Locking Inlet, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL2435SW

  • Zoro # G0595987

product price:  $80.89
/ea

Key Features

NEMA Receptacle Configuration
L16-20P
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2435SW
Zoro #
G0595987
UPC #
783585231488
Country of Origin
United States

Dimensions

Flange Height
3.75 in
Overall Depth
2.27 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Face Plate Height
3.75 in
Cord Size
16 to 8 AWG

Details

Item
Watertight Locking Plug
NEMA Receptacle Configuration
L16-20P
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray, White
Mount Type
Flush
Cover Type
Closure Cap
Flange Type
Flanged
Standards
4X and Type 12, CSA Type 4, UL Listed
Resistance Properties
Impact Resistant, Watertight
Special Features
With Locking Cover
Wiring Style
Standard
Material
Reinforced Nylon
IP Rating
IP66
Grade
General Use
Mounting Type
Flush Mount
Blade Material
Brass
Includes
Closure Cap
Market
Industrial
Flange Material
PBT
Maximum Operating Temperature
167 Degrees F
Number of Blades
4
NEMA Plug Configuration
L16-20P
NEMA Enclosure Rating
12, 4, 4X
Horsepower Rating
5 hp
Shrouded
Yes
Minimum Operating Temperature
-40 Degrees F
Housing Material
Thermoplastic
Weight
0.65 lb
Contact Material
Brass
Retainer Material
Clear Polycarbonate
Flammability
UL 94 V0
Screw Material
Stainless Steel
Dielectric Strength
2000V
NEMA Configuration
L16-20
NEMA Rating
12, 4, 4X
Amps
20
UL 94 Flammability Rating
V-0

Description

• One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
• Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
• Closure cap is included for environmental seal when device is not in use
• Catalog number and color-coded voltage rating are easily visible even when in use
