  6. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

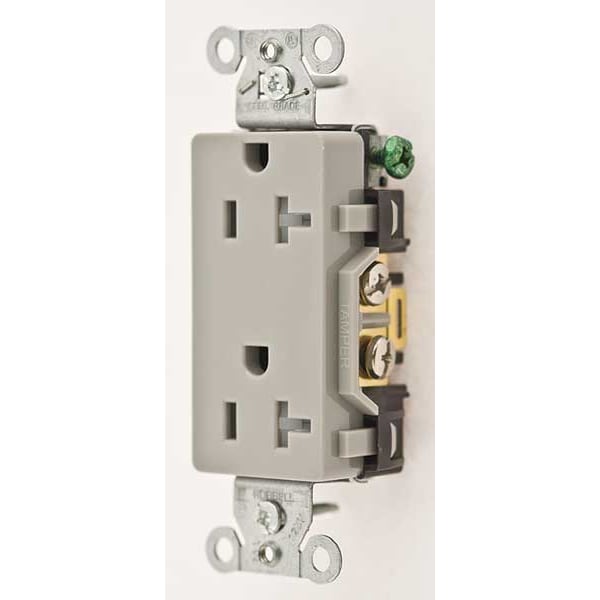

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR20GRYTR - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR20GRYTR

  • Zoro # G1473753

product price:  $11.65
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20GRYTR
Zoro #
G1473753
UPC #
783585144429
Country of Origin
China

Dimensions

Minimum Wire Size
12 AWG
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Width
1.3 in
Mount Hole Center-to-Center Height
2.7 in
Overall Depth
1.3 in
Face Plate Width
1.3 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
C22.2, Certified to CSA, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, No. 42, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
NEMA Configuration
5-20
Outlet Type
Decorator
HP
1 hp
Voltage
125VAC
Material
Nylon
Sub-Category
Duplex Receptacles
Number of Gangs
1
Surge Suppression
No
Weather Resistant
No
Power Indicator
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Tamper Resistant
Yes
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Corrosion Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Commercial
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Flush
Type
Duplex
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Horsepower Rating
1 hp
Shrouded
No
Contact Material
Brass
NEMA Enclosure Rating
1
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Surge Protection
No
AFCI
No
Grade
Federal Specification
Market
Commercial, Industrial
Connection Orientation
Straight
Polarized
Yes
For Location
Indoor
Housing Material
Nylon
Cover Type
No Cover
GFCI
No
Face Shape
Decorator
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Auto Ground Clip Material
Stainless Steel
Device Color
Gray
Power Contacts Material
.030" (.8) Brass
Base Material
Nylon
Terminal Screw Material
#8-32 Brass, Multiple Drive
Receptacle Grade
StyleLine Decorator Series, Specification Grade, Tamper Resistant
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Standard
NEMA
Mounting Screw Material
Steel-Zinc Plated
Flammability
UL 94 V2.
Horsepower
1
Ground Screw Material
#8-32 Brass, Multiple Drive
Current Interrupting
Certified for current interrupting at full rated current
Top Material
Nylon
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Rating
20A, 125V
Poles and Wires
2 Pole, 3-Wire Grounding
Mounting Strap Material
.040" (1) Steel (Galvanized)
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Face Style
Smooth Face

Description

The HUBBELL Receptacle is a 20A, 125V AC decorator duplex outlet suitable for flush mounting in commercial and industrial settings. It features a tamper-resistant shutter mechanism.


Key Features of the HUBBELL 5-20R Decorator Duplex Receptacle:

  • Amperage/Voltage: Rated for 20A at 125V AC

  • NEMA Configuration: 5-20R, single phase, polarized, grounded (2-pole, 3-wire)

  • Tamper Resistant: Built-in shutters

  • Mounting Type: Flush mount; includes grounding staple and mounting hardware

  • Material Construction: Nylon housing and base; brass power contacts; steel-zinc plated mounting screws

  • Wiring Method: Supports both back and side wiring for #12–#10 AWG copper conductors

  • Certification & Standards: UL Listed (File E2186), CSA Certified C22.2 No.42, NEMA WD-6 compliant

  • Operating Temperature Range: -40°F to 167°F (-40°C to +75°C)
