Shop PASS & SEYMOUR

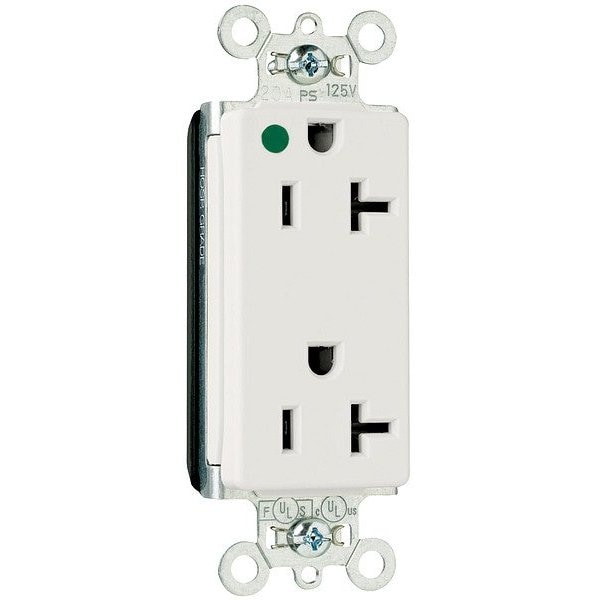

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Recessed Mount, Grounded

  • Mfr # PT26362HGW

  • Zoro # G015677546

product price:  $18.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Three
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PT26362HGW
Zoro #
G015677546
UPC #
785007309744
Country of Origin
Mexico

Dimensions

Overall Depth
0.6 in
Maximum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Mount Hole Center-to-Center Width
0.9 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Three
Number of Poles
2
Number of Wires
3
Wire Connection Type
Wire Leads
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
Fed Spec, UL 498, cULus Listed
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Market
Commercial
For Environment
Corrosive
UL 94 Flammability Rating
V-2
Features
Auto-Ground Clip Assures Positive Ground, Crimped and Welded Contacts, Pre-Stripped Connector Leads
Contact Material
Brass
GFCI
No
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Housing Material
Polycarbonate
Grade
Hospital Grade
NEMA Enclosure Rating
1, 6
Polarized
Yes
AFCI
No
Surge Protection
No
Flange Shape
Rectangular
Hub Type
Feed Through
Shrouded
No
Connection Orientation
Straight
Cover Type
No Cover
Number of Wall Plates Included
0
Number of Gangs
1
Number of Outlets
2

Description

Receptacle
